Brand
|
PELADN
|
|
Product Model
|
YO1 395
|
|
CPU
|
AMD AI Max+ 395, 16 Cores And 32 Threads, TDP:55W/85W/120W Three Models Available;
Base Frequency 3GHz, Maximum Turbo Frequency 5.1GHz
|
|
CPU Cache
|
L2 Cache 16MB; L3 Cache 64MB
|
|
AI Engine Performance
|
Overall TOPS: Up To 126 TOPS
NPU TOPS: Up To 50 TOPS
|
|
Graphics
|
Radeon 8060S Graphics, 40 Cores, Graphics Card Maximum Core Frequency 2900MHz
|
|
Memory
|
Equipped With LPDDR5X-8000MHz 128GB Memory(Memory Replacement And Additional Installation Are Not Supported)
|
|
Storage
|

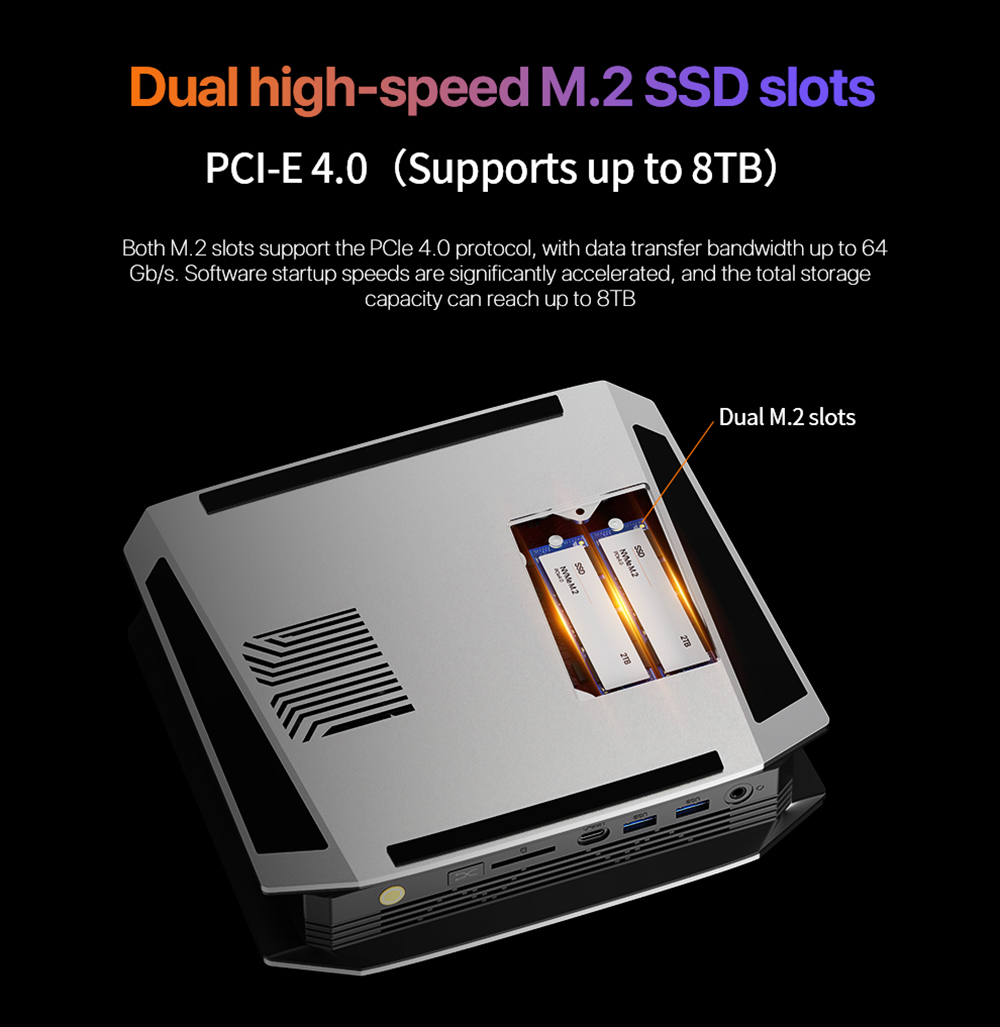

Equipped With 2TB 2280 Specification PCIe 4.0×4 M.2 SSD, 1*PCIe 4.0×4 M.2 Expansion Slot Reserved
|
|
Network
|
1*2.5G RJ45 Wired Network Port, Equipped With AX210 Wi-Fi 6E Wireless Network Card, Support Bluetooth 5.2
|
|
USB
|

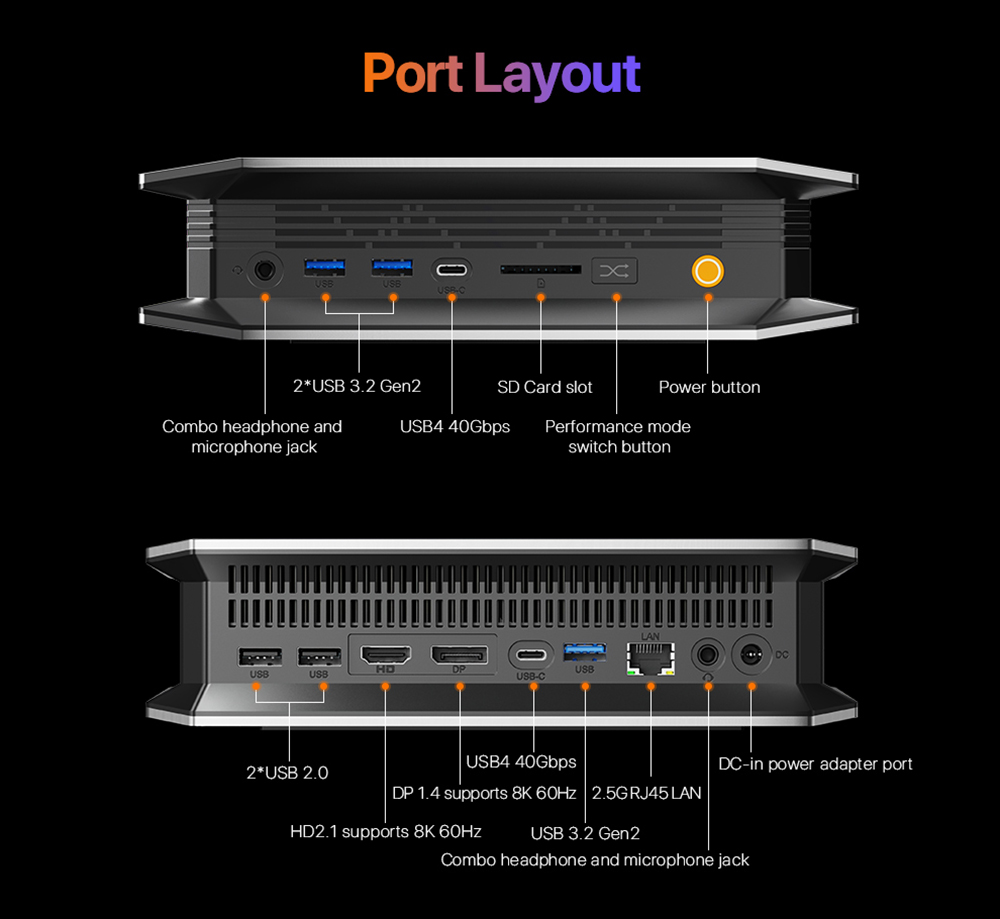

2*USB4 40Gbps Type-C Ports(1 Each On The Front And back, Supporting DP1.4, Up To 8K 60Hz Video Output)
3*USB 3.2 Gen2 Type-A Ports, 2*USB2.0 Ports
|
|

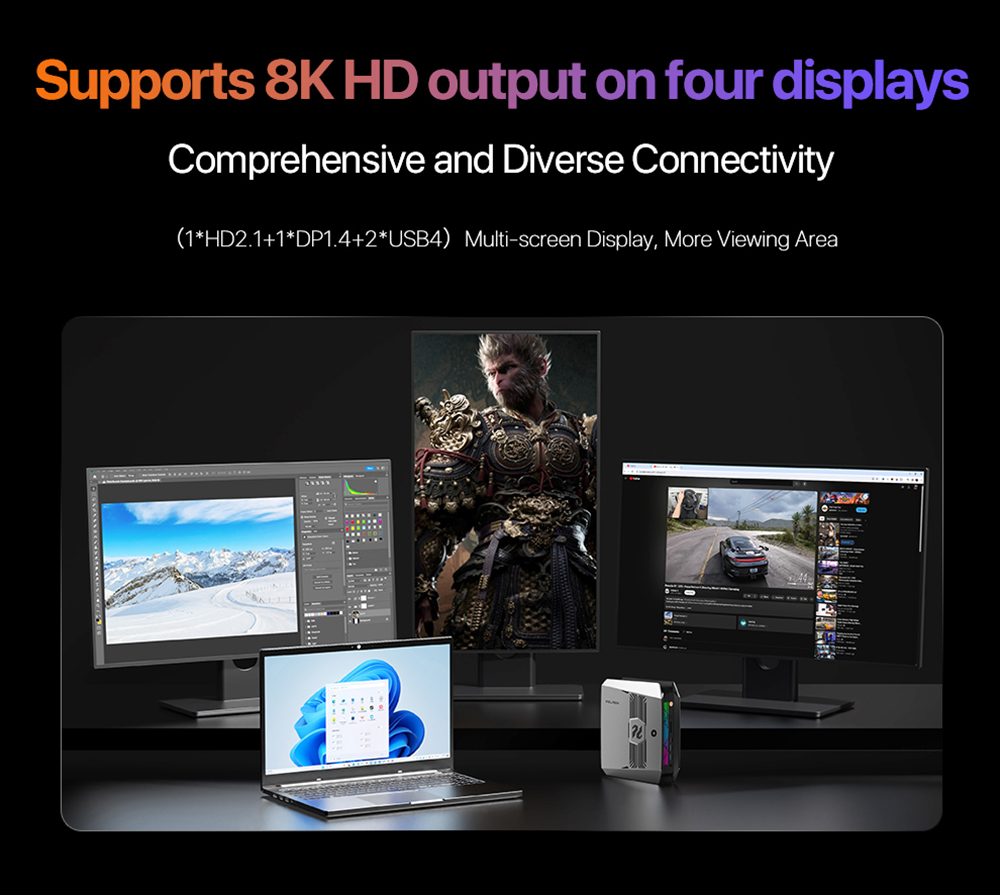

Video Output Interface
|
1*HD 2.1 Support 8K 60Hz, 1*DP 1.4 Support 8K 60Hz
|
|
Audio
|
2*3.5mm Audio Jack Headphone And Microphone Two-In-One Interface(One on the front and the other on the back panels)
|
|
SD Card Slot
|

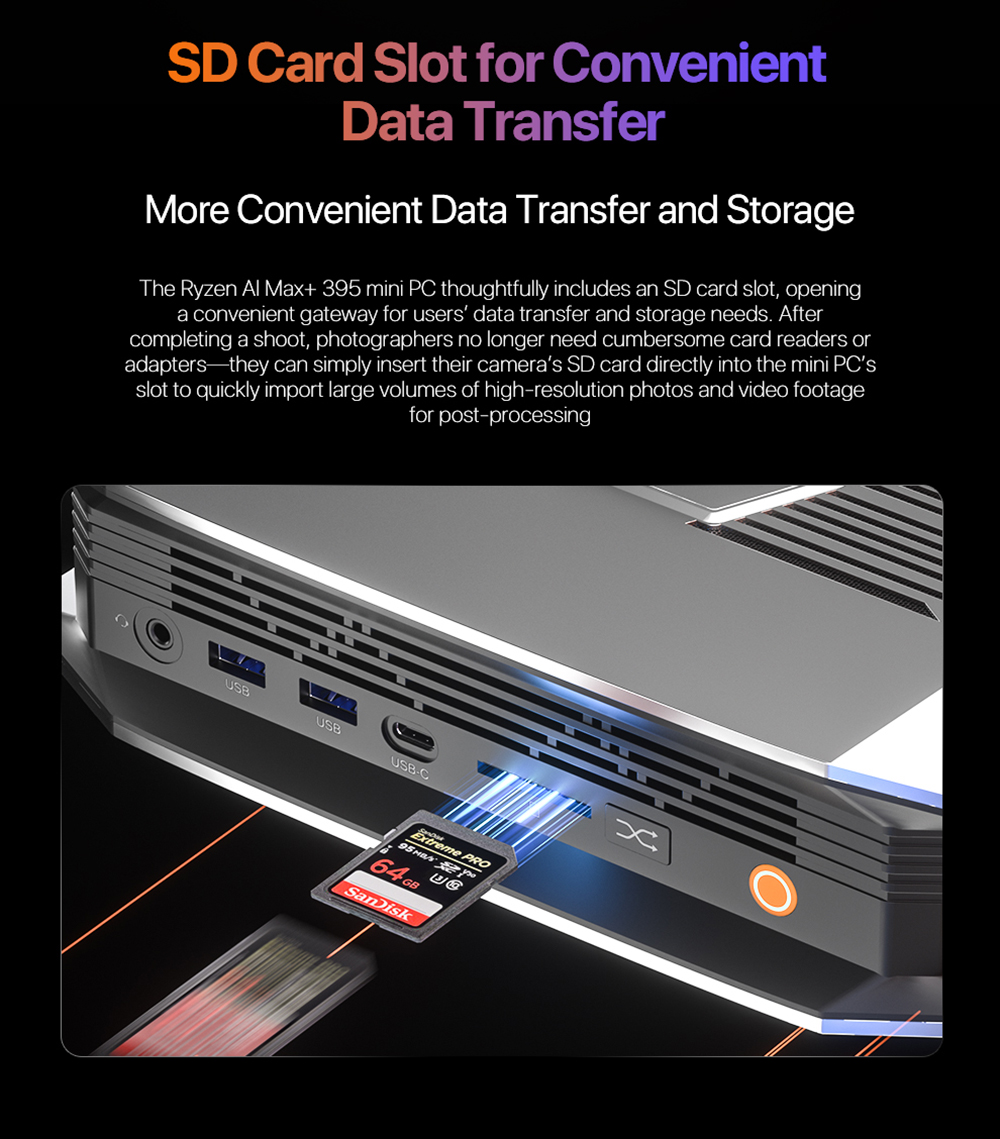

1*SD Card Slot(SD4.0 Protocol, Capacity Level SDXC, Speed Limit UHS-II)
|
|
Power Interface
|
1*DC-in Power Adapter Port
|
|

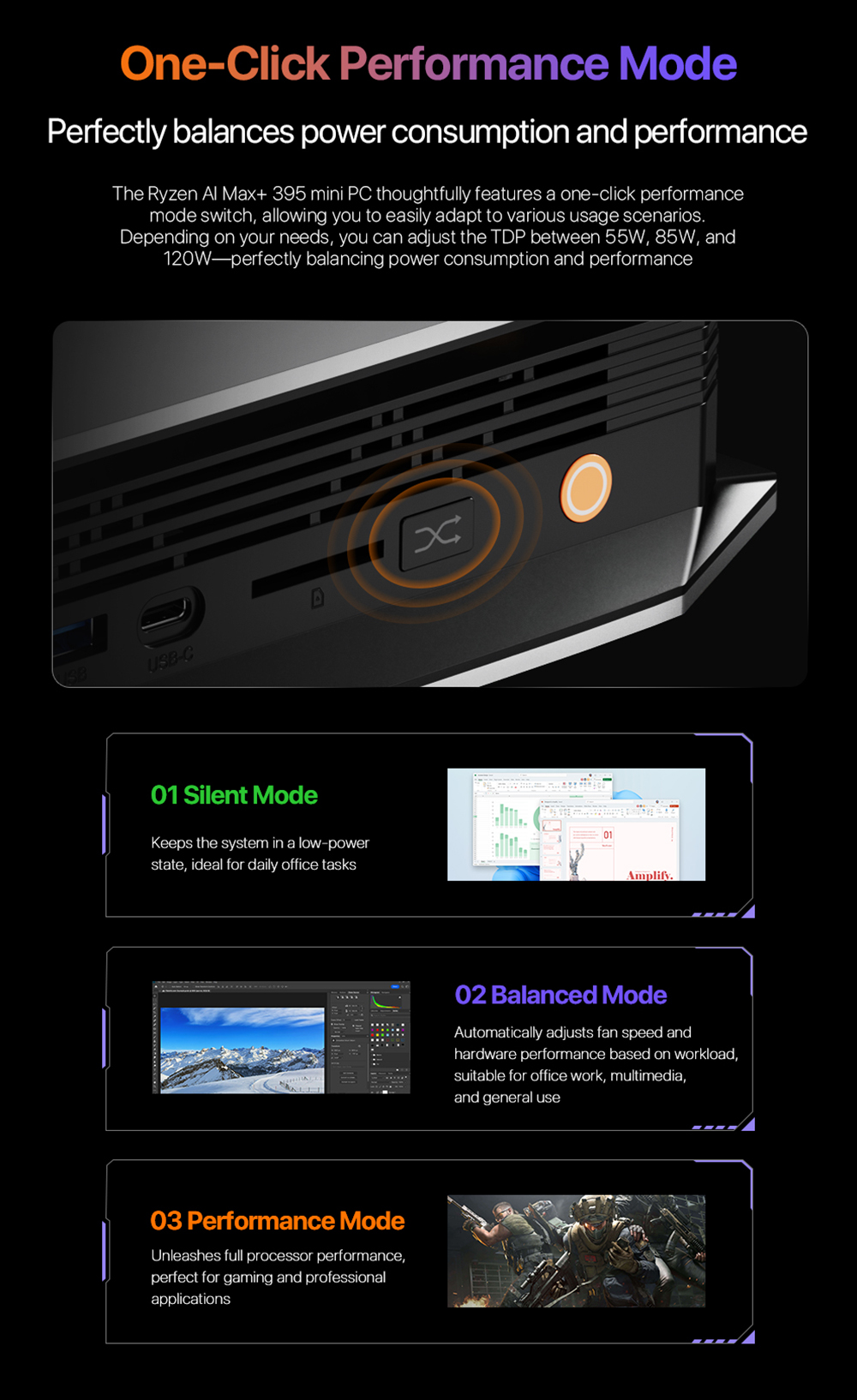

Performance Mode Switch Button
|
Support(Front Panel), Can Switch 55W/85W/120W Three Different TDP Modes
|
|
Power Switch Button
|
Support(Front Panel)
|
|
Material/Color
|
Aluminum, Silver
|
|
RGB
|
Not Supported
|
|
OS
|
Pre-installed Win 11 Pro(Support Other OS Just Like Win 10/LINUX)
|
|
Power Adapter
|
Input: 100--240V AC, 50/60Hz, Output: 20V 12A
|
|
Work Environment
|
Temp: -20℃ -- 60℃, RH: 10%--90%
|
|
Warehouse Environment
|
Temp: -20℃ -- 60℃, 10%--90%
|
|
Packing List
|
1*HD Cable, 1*Power Adapter(20V 12A), 1*User Manual
|
|
Other Features
|
Support Power-On Start
|
|
Weight And Size(Manual Measurement, Data For Reference Only)
|
Net Weight: 1380g Product Size: 221*200*56mm
|
|
|
Gross Weight:3000g Packing Size: 363*283*88.5mm
|
|
Packing Information
|
Qty/Carton:6(Cartoon Size: 55*38*30.8cm)
|
