Brand
|
PELADN
|
|
|
Product Model
|
WO7 7735U
|
|
|

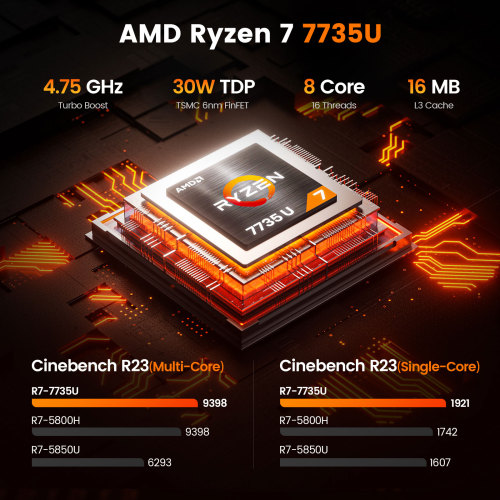

CPU
|
AMD 7735U / 8 Cores / 16 Threads TDP: 30W
|
|
|
Base Clock Frequency:2.7GHz
Maximum Acceleration Clock Frequency:4.75GHz
|
||
|

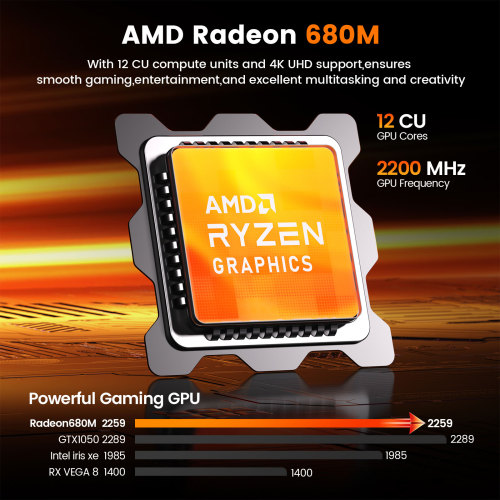

Graphics Card Model
|
AMD Radeon 680M Graphics Card Frequency: 2200 MHz
|
|
|
Cache
|
L2 Caching: 4MB / L3 Cache: 16 MB
|
|
|

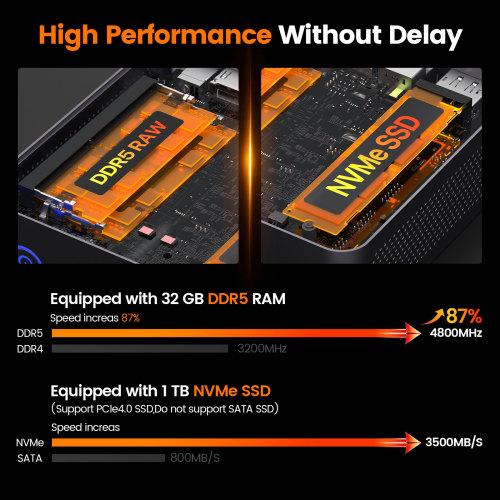

SO DIMM DDR5
|
DDR5 4800MT/s Or 5600MT/s Maximum Support 64GB
|
2
|
|
SSD PCIE3.0
|
SSD PCIE3.0/PCIE 4.0 M.2 NVMe SSD 2280 Maximum Support 4TB
|
1
|
|

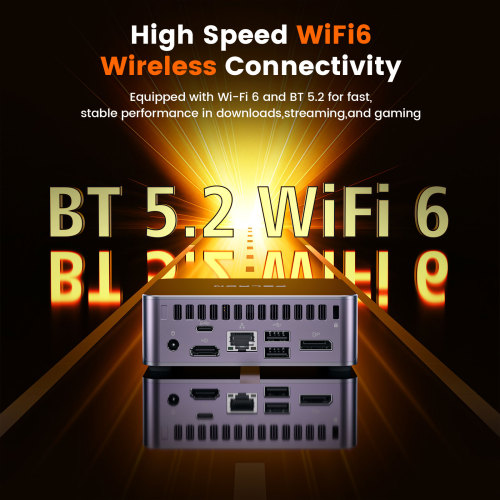

WIFI/BT
|
9852BE/M.2 E_key WiFi 6.0/BT 5.2
|
|
|

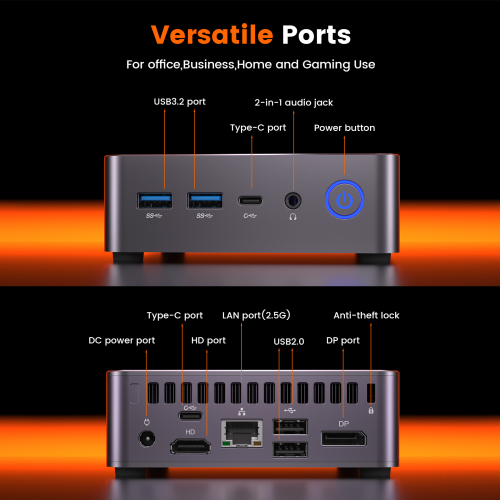

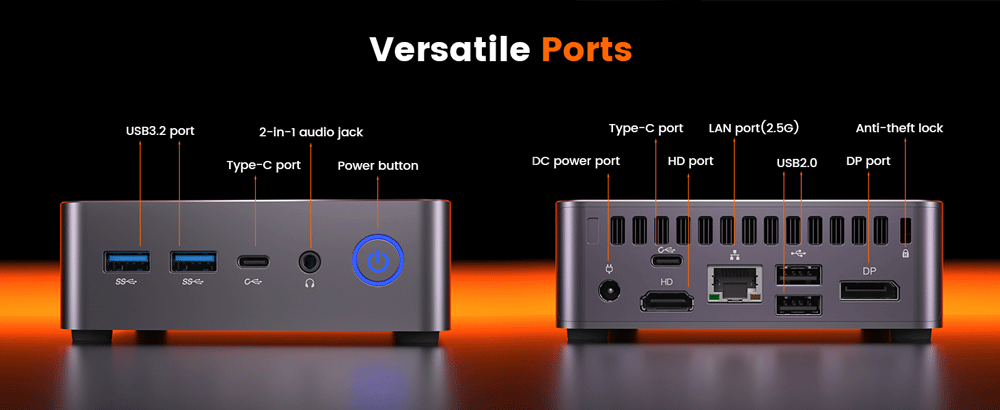

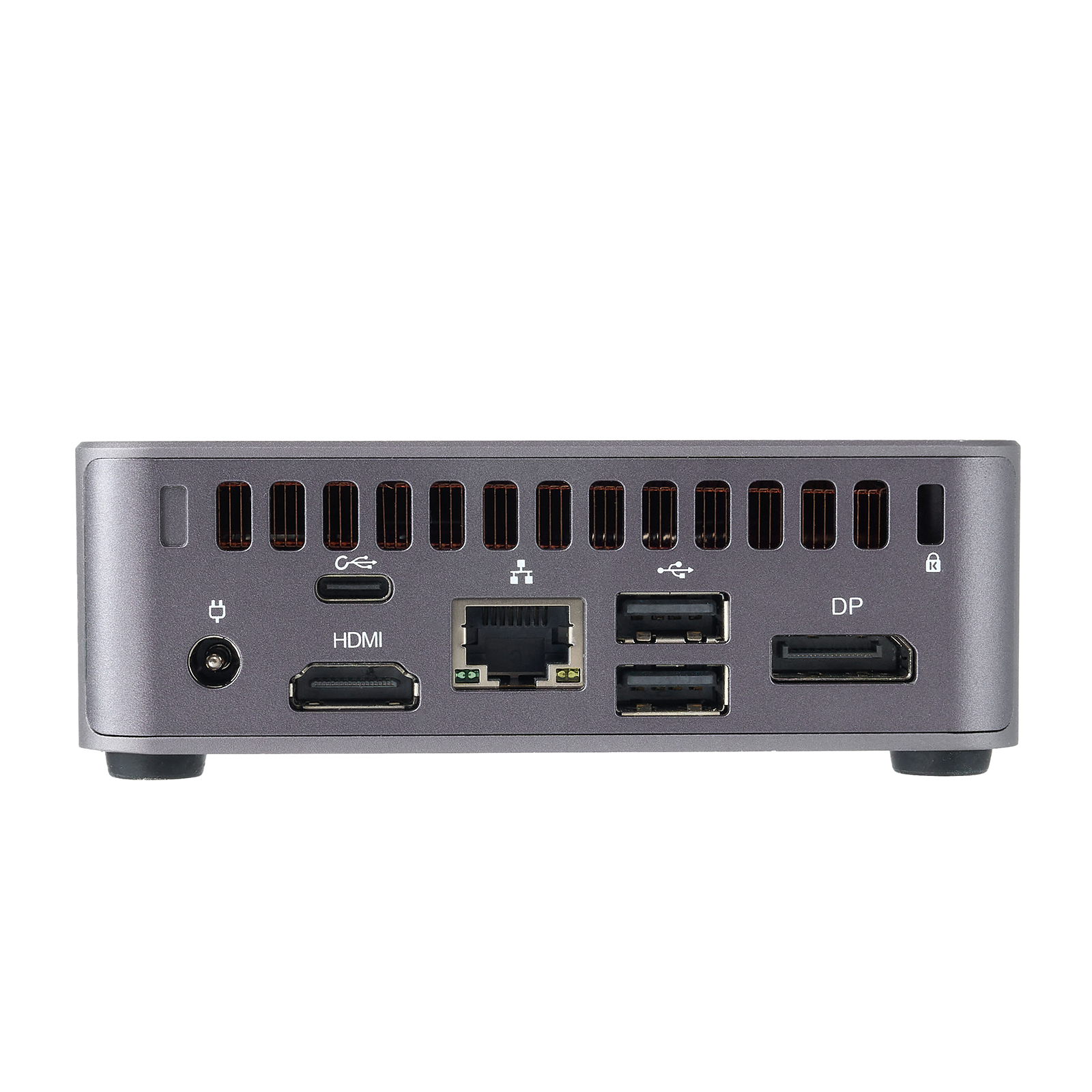

Interface
|
USB 3.2 Gen2(Type A)
|
2
|
|
USB 2.0
|
2
|
|
|
1000M LAN(RJ45)
|
1
|
|
|
Audio Jack(HP&MIC)
|
1
|
|
|
HD 2.0.4K 60Hz
|
1
|
|
|
DP 1.4 4K 30Hz
|
1
|
|
|
Type-C USB 3.2 GEN2, 10Gb Data Only/Data+DP
|
2
|
|
|
DC Jack 5.5*2.5
|
1
|
|
|
Power Button
|
1
|
|
|
Operating System
|
Windows 11 Pro / LINUX
|
|
|
Power Adapter
|
AC 100~240V, 19V/3.42A
|
|
|
Input: 100~240V AC, 50/60Hz, Output: 19V 3.42A
|
||
|
Working Environment
|
-10℃-45℃, 30%-90% Humidity
|
|
|
Storage Environment
|
-20℃-60℃, 10%-90% Humidity
|
|
|
Accessories
|
Wall-mounted Bracket, Screw Packs
|
|
|
HD Cable 100CM
|
||
|
Adapter 19V/3.42A
|
||
|
Additional Features
|
Call Start
|
|
|
Dimension
|
113*113*36mm
|
|
|
N.W
|
Device Weight:550g
|
|
