Brand
|
PELADN
|
|
|
Product Model
|
WO4 155H
|
|
|
CPU
|
Intel 155H
|
|
|
Threads
|
20
|
|
|
Base Clock
|
3.6GHz
|
|
|
Max.Boost Clock
|
4.8GHz
|
|
|
TDP
|
55W
|
|
|
Graphics Card Model
|
Intel ARC Graphics Card
|
|
|
Frequency
|
2.25GHz
|
|
|
NPU Model
|
Intel Ebster
|
|
|
Cache
|
24MB
|
|
|
SO DIMM DDR5
|
16G/5600MHz Maximum Support 96GB
|
|
|
SSD1 PCIE 4.0
|
M.2 NVME SSD 2280 Maximum Support 4TB
|
|
|
SSD2 PCIE 3.0
|
M.2 NVME SSD 2280 Maximum Support 4TB
|
|
|
Wi-Fi/Bluetooth
|
AX200/M.2 E_key WiFi 6.0/Bluetooth5.2
|
|
|

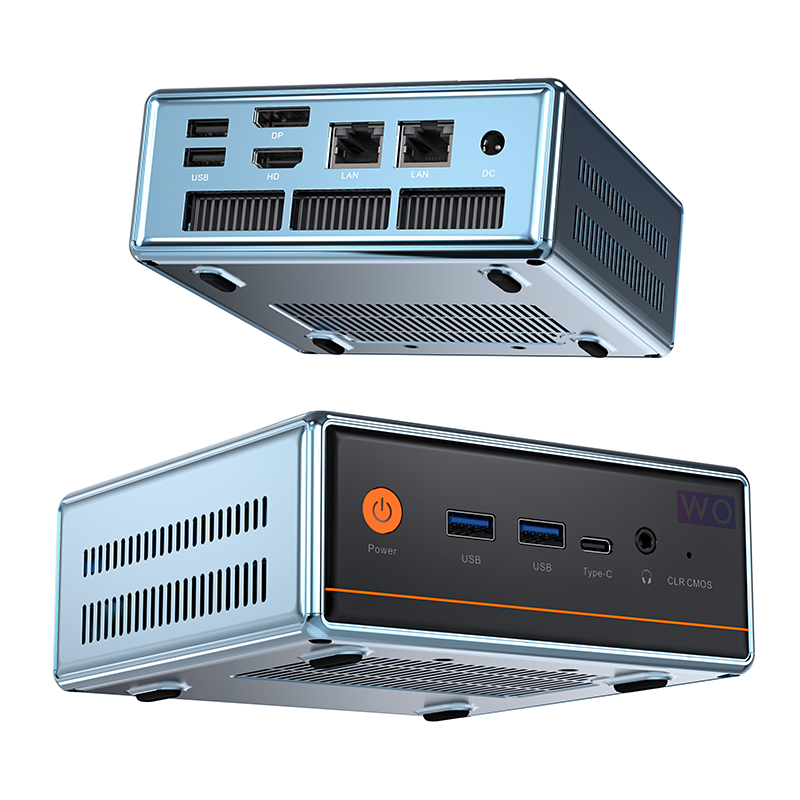

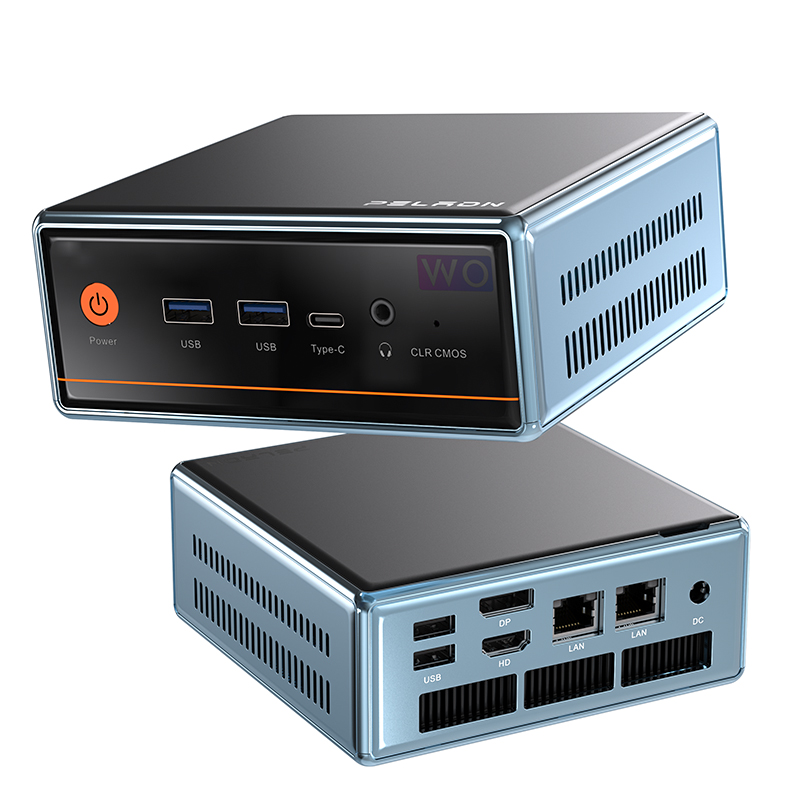

I/O Interface
|
USB3.2
|
2
|
|
USB2.0
|
2
|
|
|
2.5G Local Area Network(RJ45)
|
2
|
|
|
Audio Jack(HP&MIC)
|
1
|
|
|
HD 2.0 4K 60Hz
|
1
|
|
|
DP 1.4 4K 60Hz
|
1
|
|
|
USB4.0 Mazimum Support 40GB Data Transmission
|
1
|
|
|
DC Jack 5.5*2.5
|
1
|
|
|
Power LED
|
1
|
|
|
Power Button
|
1
|
|
|
Operating System
|
Windows 11 Pro
|
|
|
Power Adapter
|
AC 100~240V, 19V/6.3A
|
|
|
Input: 100-240V AC, 50/60Hz, Output: 19V 6.3A
|
||
|
Working Environment
|
-10℃-45℃, 30%--90% Humidity
|
|
|
Storage Environment
|
-20℃-60℃, 10%--90% Humidity
|
|
|
Fittings
|
Wall Mount Bracket, Screw Packs
|
|
|
HD 100CM
|
||
|
Adapter 19V/6.3A
|
||
|
Dimension
|
128*128*52mm
|
|
|
Weight
|
Only Device: 0.9KG
|
|
|
With Accessories: 2KG
|
||
|
Additional Features
|
Power On Automatically
|
|
