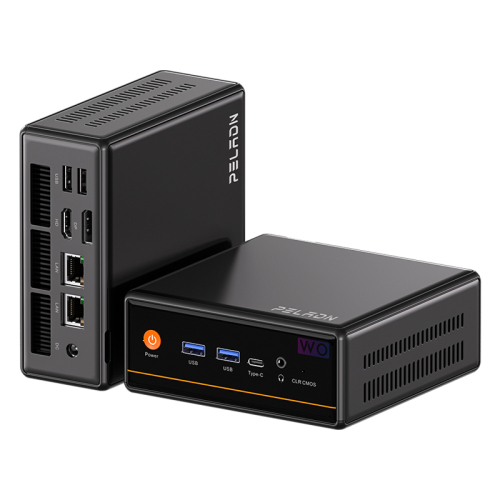

Brand
|
PELADN
|
|
Product Model
|
WO4 7640HS
|
|
CPU
|
AMD RyzenTM 5 7640HS Processor, 6 Cores and 12 Threads, TSMC 4nm Process Technology, TDP:45W Base Frequency 4.3GHz, Maximum Turbo Frequency 5GHz
|
|
CPU Cache
|
L2 Cache 6MB, L3 Cache 16MB
|
|
Graphics
|
AMD RadeonTM 760M Graphics Card, Maximum Graphics Card Frequency 2600MHz
|
|
Graphics Memory
|
4GB(Supports Modification Of Video Memory Capacity In BIOS)
|
|
Memory+Storage
|
2*SO-DIMM DDR5 5600MHz Memory Slots, Support Dual Channels, Support Up To 64GB Memory 1*PCIe 4.0×4 M.2 Slot, 1*PCIe 3.0×4 M.2 Slot, Neither Supports SATA Protocol M.2 Hard Drivers(Specific Hard Drive Memory Capacity Is Subject To Actual Configuration)
|
|
network
|

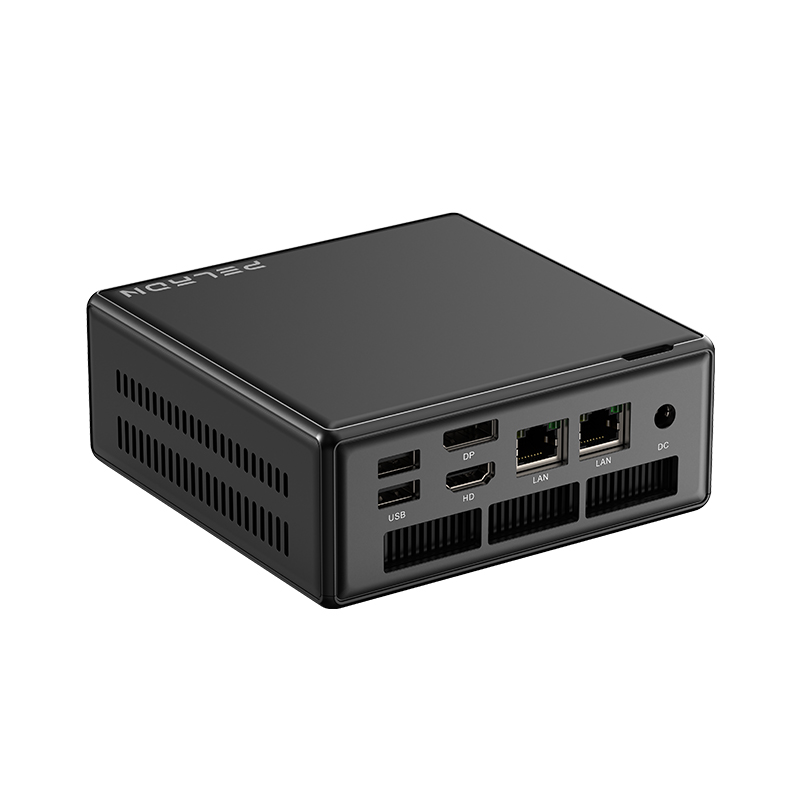

1*2.5G RJ45 Wired Network Port, 1*1000M RJ45 Wired Network Port, Equipped With Wi-Fi 6 Wireless Network Card, Supports BT 5.2
|
|
USB
|
1*USB4 40Gbps Type-C Port(Supports DP1.4, Supports Using A PD Protocol Adapter To Power The Mini PC), 1 USB 3.2 Gen2 Type-C(Supports DP1.2 Video Output) 2*USB 3.2 Gen2 Type-A Ports, 2*USB2.0 Ports
|
|
Video Output Interface
|
1*HD 2.0, Supports Up To 4K 60Hz Video Output;
1*DP 1.2, Supports Up To 4K 60Hz Video Output
|
|

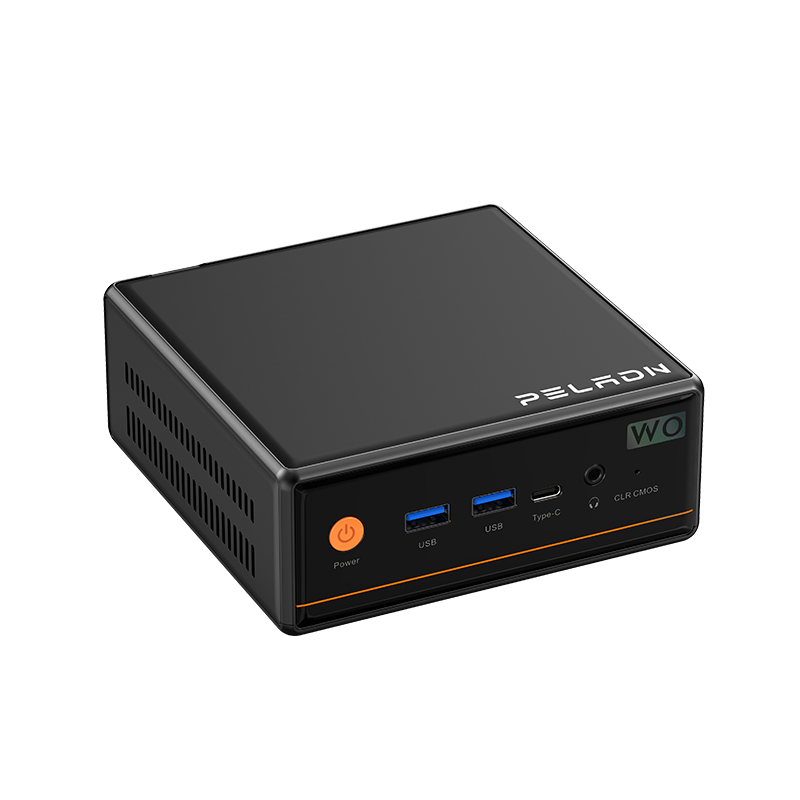

Audio
|
1*3.5mm Audio Jack Headphone And Microphone Two-In-One Interface(Front Panel)
|
|
Power Interface
|
1*DC-in Power Adapter Port(5.5mm×2.5mm)
|
|
Button
|
1*Power Switch Button, 1*Clear CMOS Button
|
|
Sheel Material/Color
|
Plastic(Black)
|
|
OS
|
Pre-installed Win 11 Pro Operating System(Supports Installation Of Other Operating Systems Such As Win 10/LINUX)
|
|
Power Adapter
|
Input: 100-240V AC, 50/60Hz, Output: 19V 6.32A
|
|
Work Environment
|
Temp: -20℃--60℃, RH: 10%--90%
|
|
Warehouse environment
|
Temp: -20℃--60℃, RH: 10--90%
|
|
Packing List
|
1*Mini PC, 1*HD Cable, 1*Power Adapter(19V 6.32A), 1*VESA Bracket, 1*User Manual
|
|
Other Features
|
Support Power-on Start
|
|
Weight And Size(Manual Measurement, Data For Reference Only)
|
Net Weight: 550g Product Size: 128*128*52mm
|
|
|
Gross Weight: 1550g Packing Size: 157*158*112.5mm
|
|
Packing Information
|
Qty/Carton:12(Carton Size: 340*340*362mm)
|
