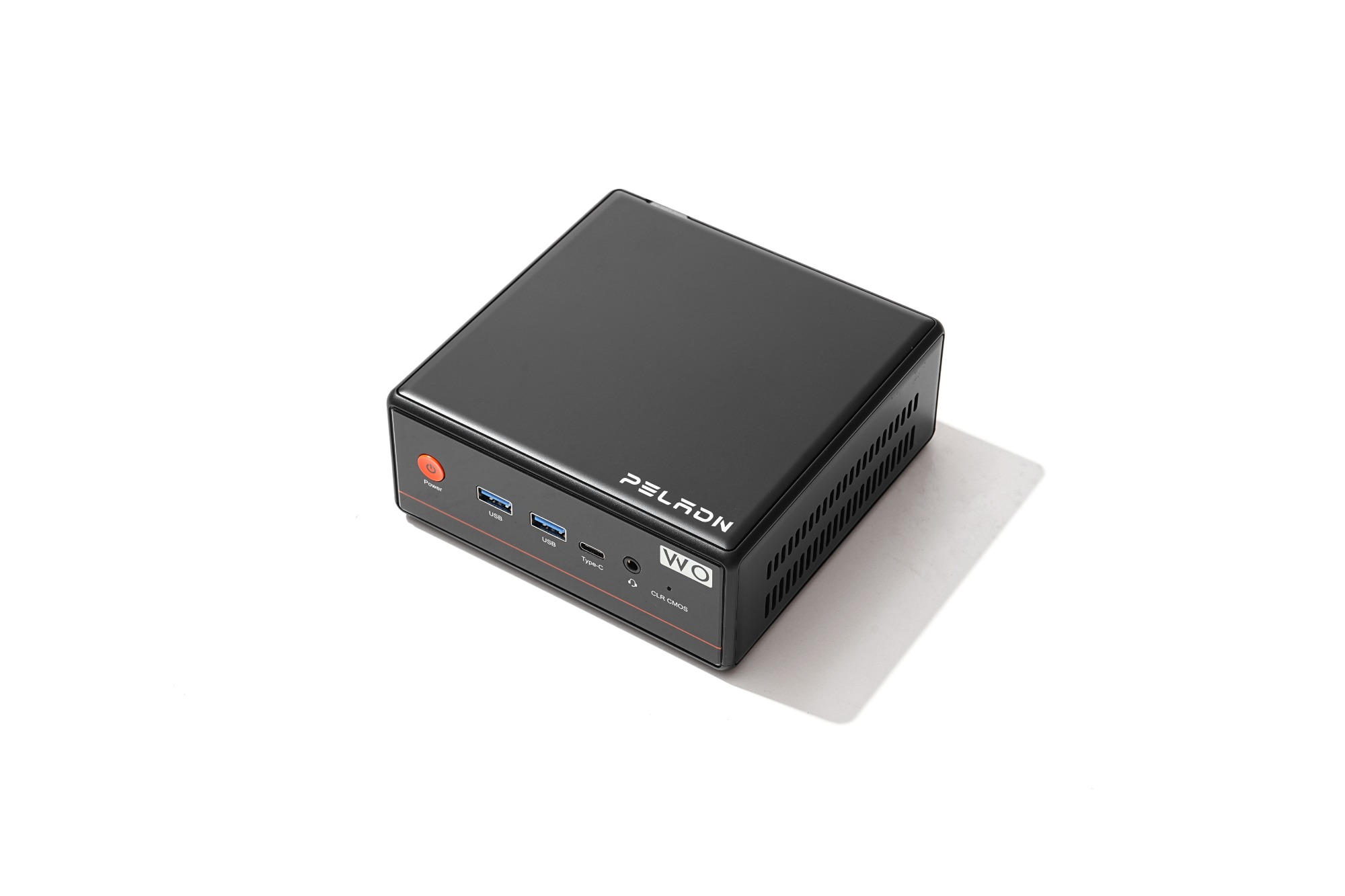

Brand
|
PELADN
|
|
|
Product Model
|
WO4 5600H
|
|
|
CPU
|
AMD 5600H / Cores:6 / Threads: 12 TDP: 45W
|
|
|
Base Clock
|
3.3GHz
|
|
|
Max Boost Clock
|
4.2GHz
|
|
|
Graphics Card Model
|
AMD Radeon Graphics Card Frequency: 1800 MHz
|
|
|
Cache
|
L2 Caching: 3MB / L3 Caching: 16MB
|
|
|
SO DIMM DDR4
|
16G 3200MHz / Maximum Support 64GB
|
2
|
|
SSD PCIE3.0
|
M.2 NVME SSD 2280 512G Maximum Support 4TB
|
1
|
|
Storage HDD
|
SATA Interface 2.5, 500GB / 1T 7200rpm
|
1
|
|
Wireless LAN / Bluetooth
|
8852BE / M.2 E_key WiFi 6.0 / BT 5.2
|
|
|

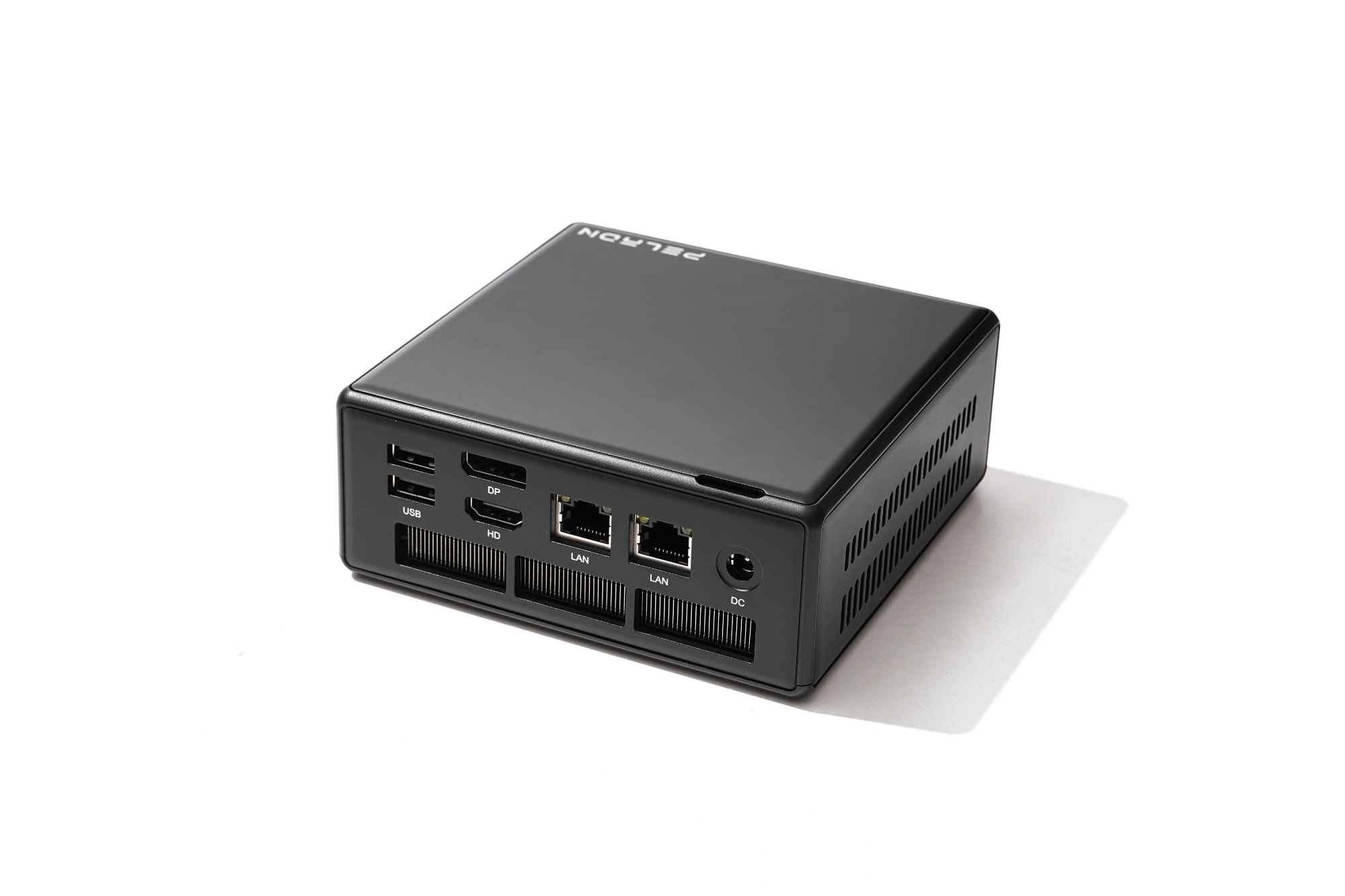

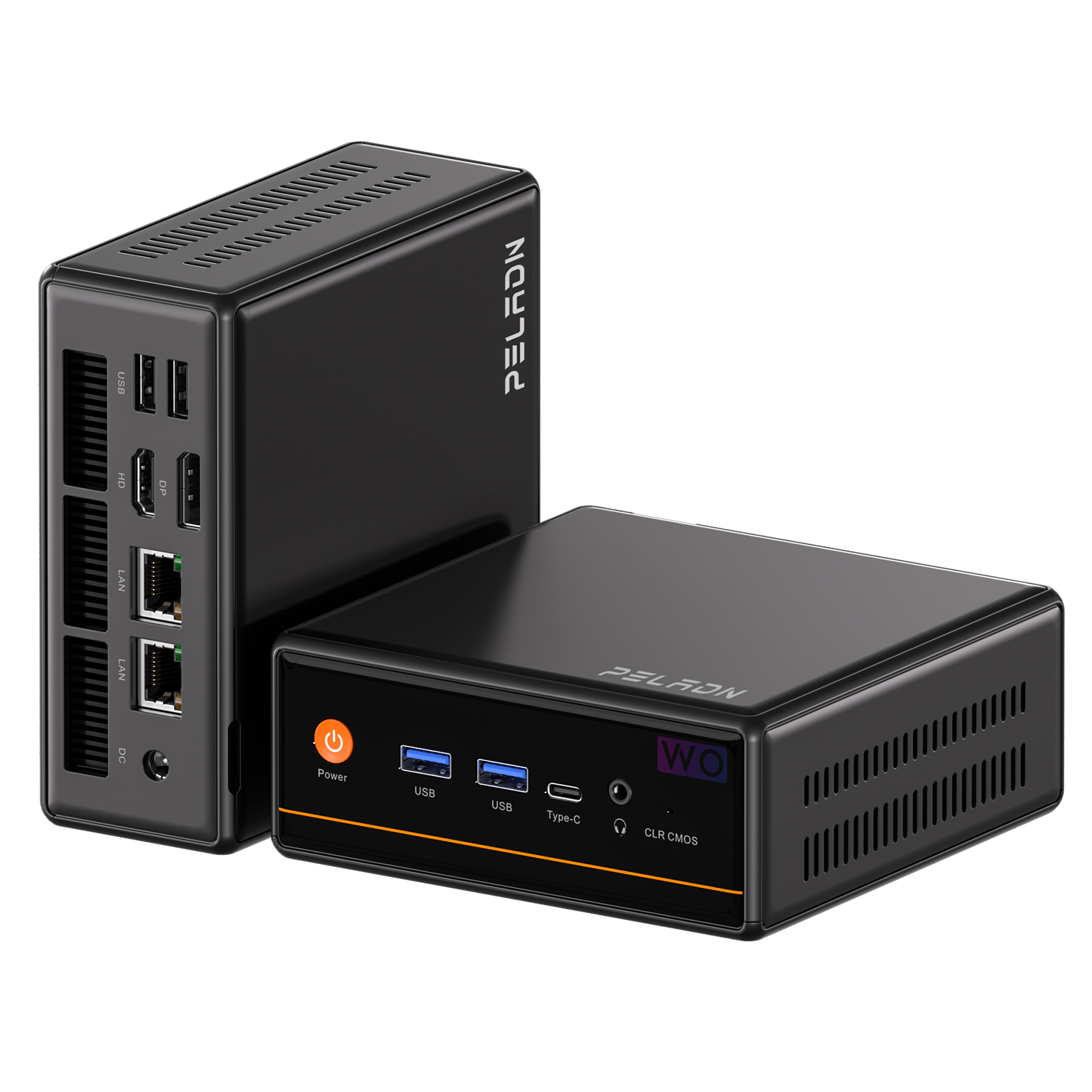

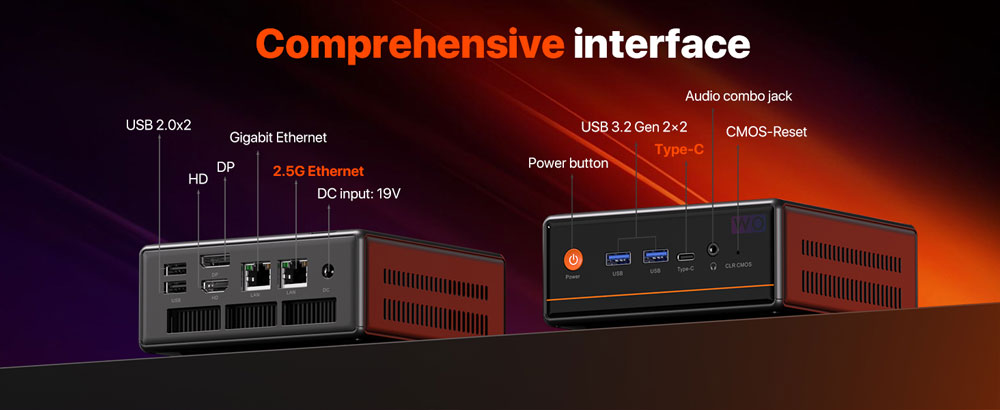

Interface
|
USB 3.2
|
2
|
|
USB 3.0
|
2
|
|
|
2.5G Local Area Network(RJ45)
|
1
|
|
|
1G Local Area Network(RJ45)
|
1
|
|
|
Audio Jack(HP&MIC)
|
1
|
|
|
HD 2.0 4K 60Hz
|
1
|
|
|
DP 1.4 4K 60Hz
|
1
|
|
|
Type-C Support Video / Data Transfer
|
1
|
|
|
DC Jack 5.5*2.5
|
1
|
|
|
Power LED
|
1
|
|
|
Power Button
|
1
|
|
|
Operating System
|
Windows 11 Pro / LINUX
|
|
|
Power Adapter
|
AC 100~240V, 19V/4.74A
|
|
|
Input: 100~240V AC, 50/60Hz, Output: 19V 4.74A
|
||
|
Working Environment
|
-10℃-45℃, 30%-90% Humidity
|
|
|
Storage Environment
|
-20℃-60℃, 10%-90% Humidity
|
|
|
Fittings
|
Wall Mount Bracket, Crew Packs
|
|
|
HD Cable 100cm, SATA Cable
|
||
|
Adapter 19V / 4.74A
|
||
|
Dimension
|
128*128*52mm
|
|
|
N.W
|
05KG
|
|
|
G.W
|
1.15KG
|
|
|
Additional Feature
|
Power On Automatically
|
|
