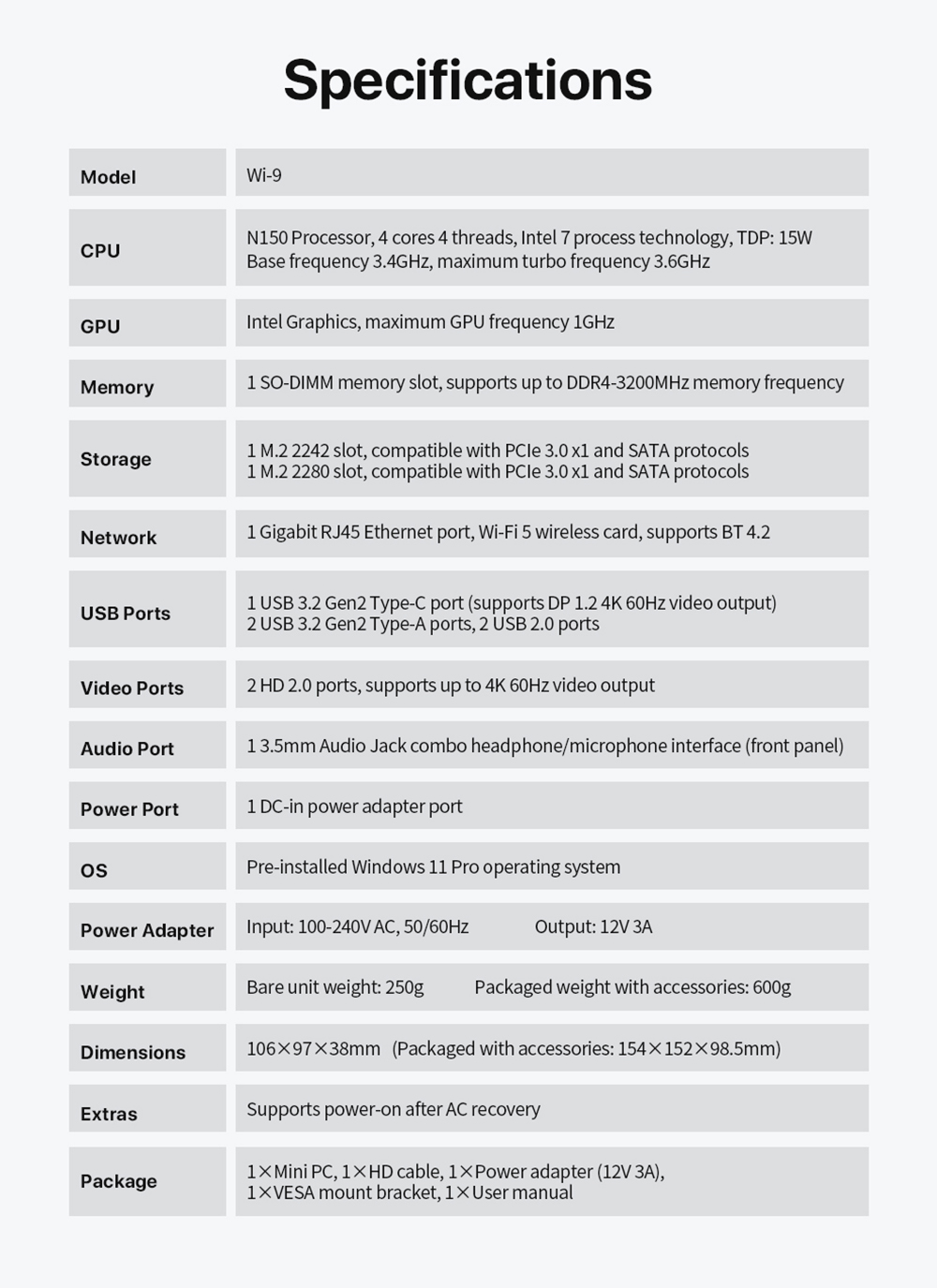

Brand
|
PELADN
|
|
Product Model
|
WI-9 N150
|
|
CPU
|
N150 Processor, 4 Cores And 4 Threads, Intel 7 Process Technology, TDP: 15W; Base Frequency 3.4GHz, Maximum Turbo Frequency 3.6GHz
|
|
CPU Cache
|
6MB
|
|
Graphics
|
Intel Graphics, Maximum Graphics Frequency 1GHz
|
|
Graphics Memory
|
Intelligent Allocation, Cannot Be Set Manually, Maximum Video Memory Capacity 512MB
|
|

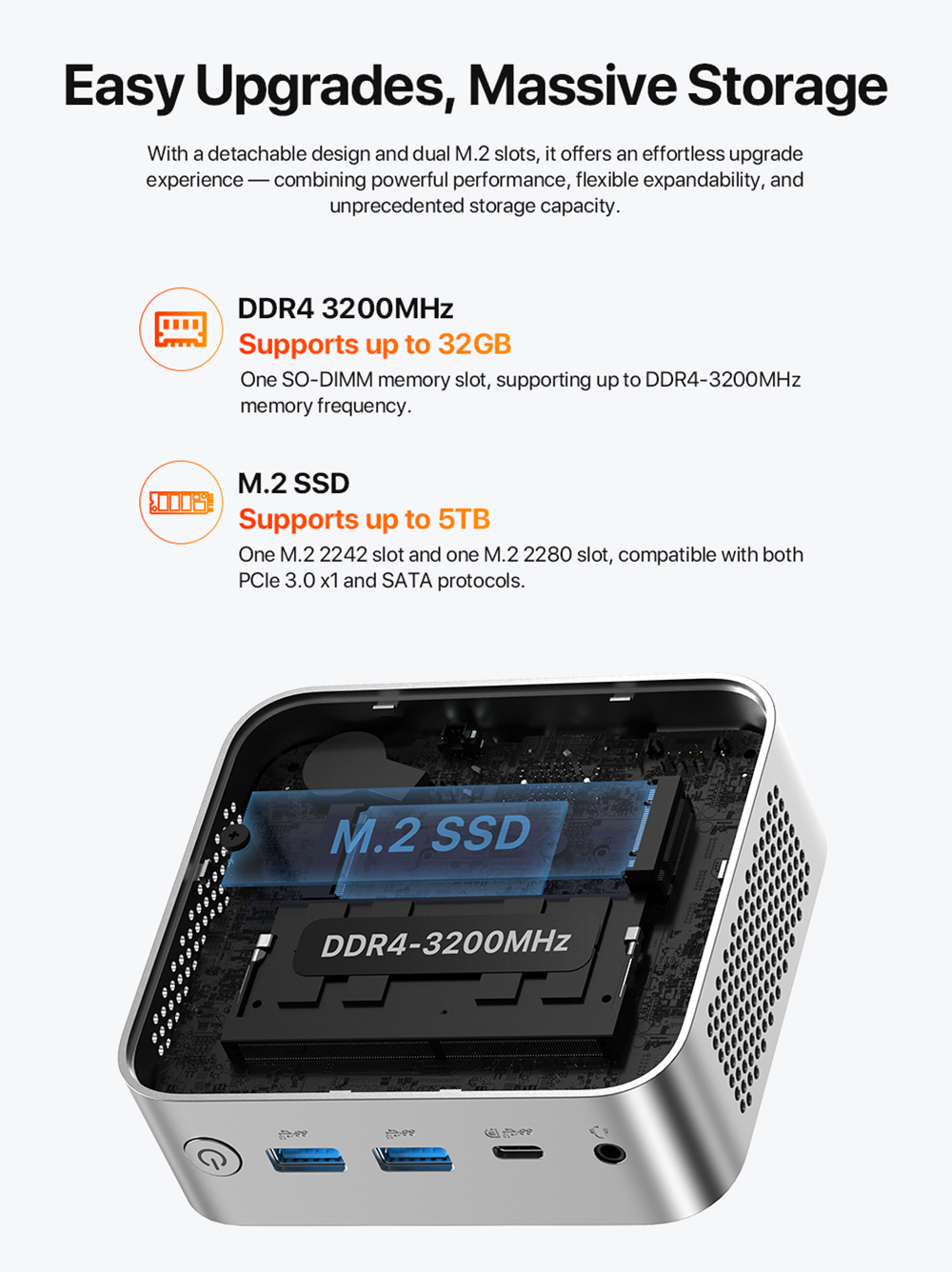

Memory + SSD
|
1*SO-DIMM Memory Slot, The Maximum Memory Frequency Can Support DDR4-3200MHz;
1*PCIe 3.0×1 And SATA M.2 SSD Slot, Support 2242 Specification;
1*PCIe 3.0×1 And SATA M.2 SSD Slot, Support 2280 Specification
*Specific Memory And Hard Disk Capacity Configuration, Subject To Actual Shipment
|
|
Network
|
1000Mbps RJ45 LAN Ports, Equipped With Wi-Fi 5 Wireless Network Card, Supports BT 4.2
|
|

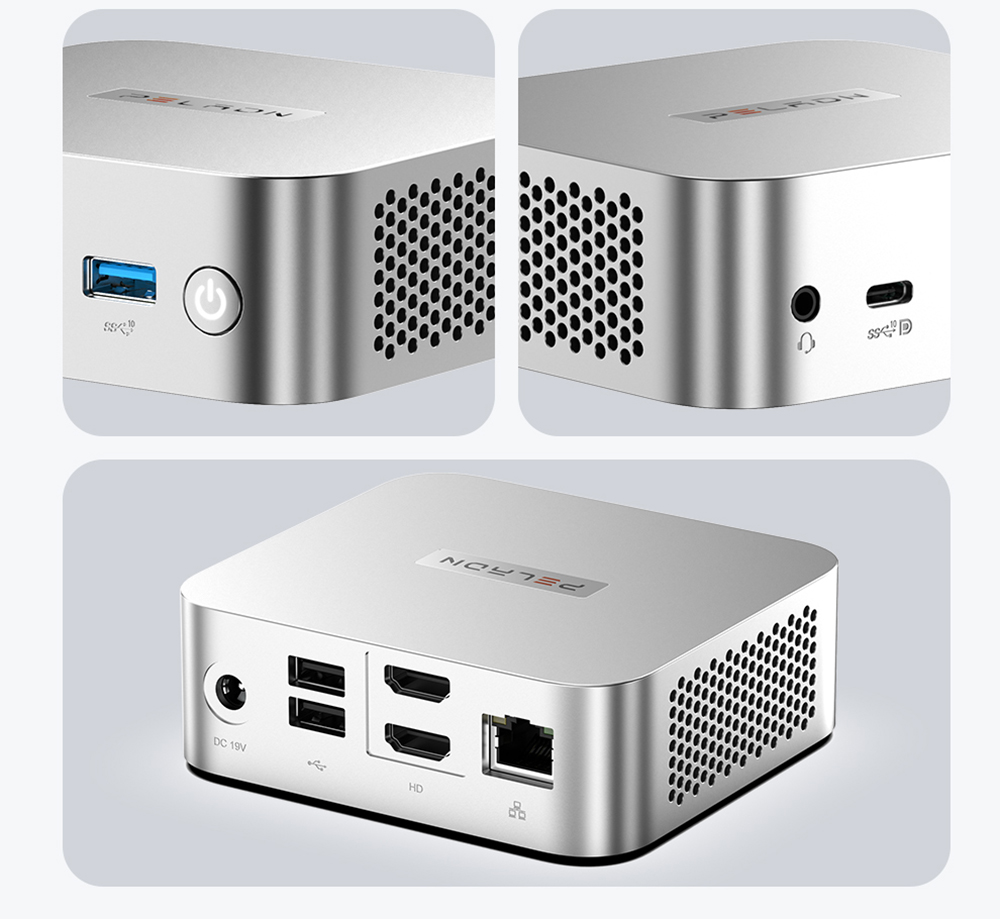

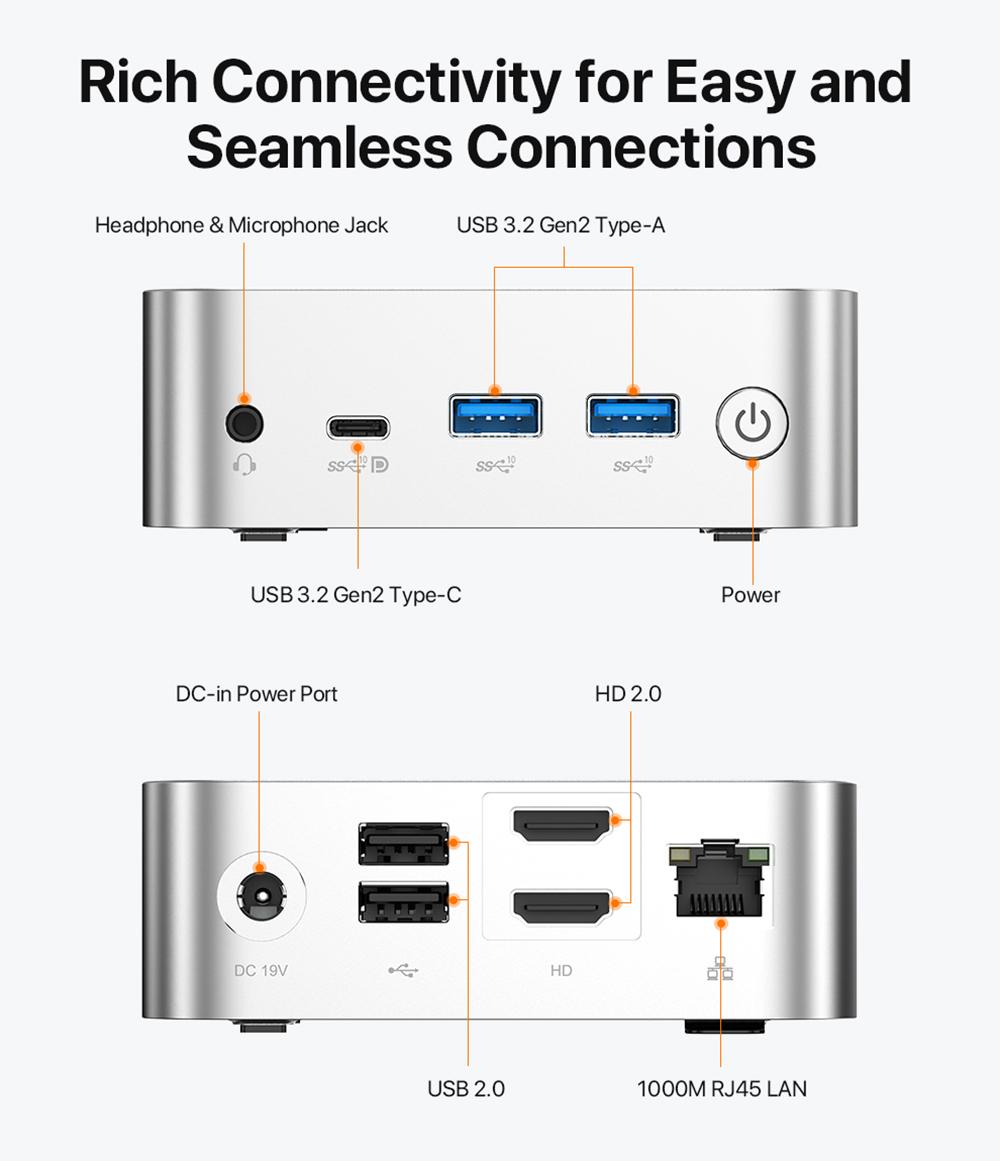

USB
|
1*USB 3.2 Gen2 Type-C Port(Support DP1.2 4K 60Hz)
2*USB 3.2 Gen2 Type-A Ports, 2*USB2.0 Ports
|
|
Video Output Interface
|
2HD 2.0, Supporting Up To 4K 60Hz Video Output
|
|
Audio
|
1*3.5mm Audio Jack Headphone And Microphone Two-In-One Interface(Front Panel)
|
|
Power Interface
|
1*DC-in Power Adapter Port
|
|
Button
|
1*Power Button, 1*Reset Button
|
|
Shell Material/Color
|
Plastic(Silver)
|
|
RGB
|
Not Support
|
|
OS
|
Pre-Installed Win 11 Pro Operating System(Supports Installation Of Other Operating Systems Such As Win 10/LINUX)
|
|
Power Adapter
|
input: 100-240V AC, 50/60Hz, Output:12V 3A
|
|
Work Environment
|
Temp: -20℃--60℃, RH: 10%--90%
|
|
Warehouse environment
|
Temp: -20℃--60℃, RH: 10--90%
|
|
Packing List
|

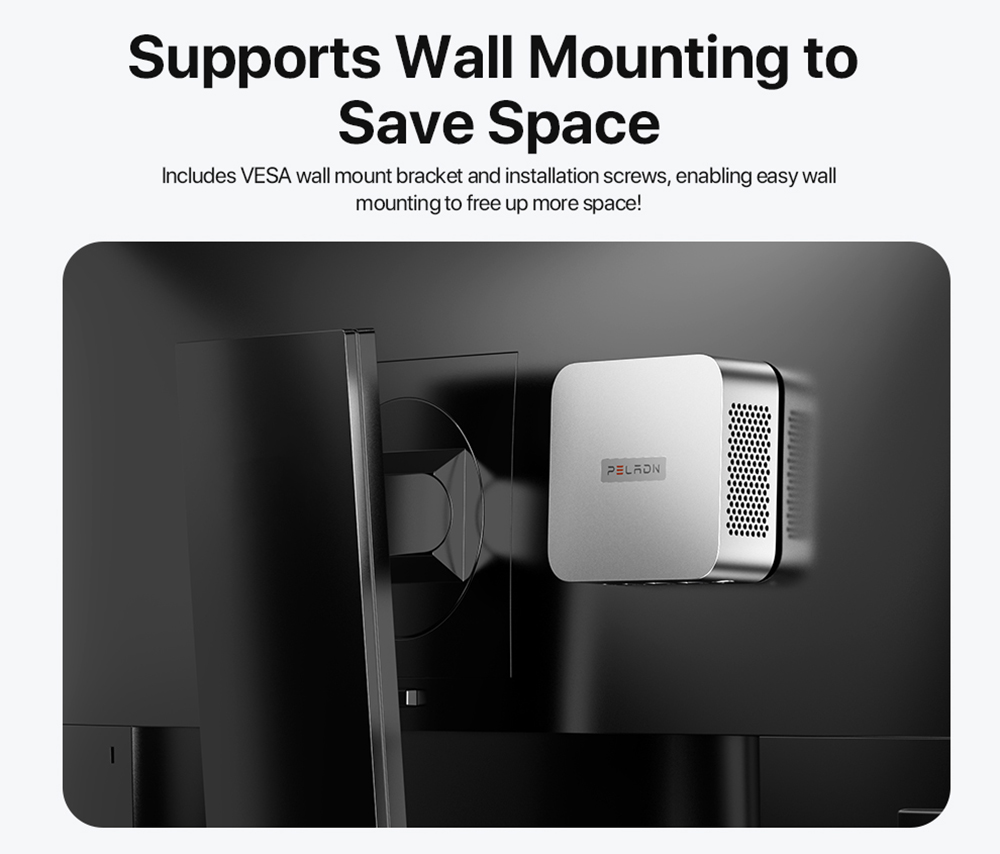

1*Mini PC, 1*HD Cable, 1*Power Adapter(12V 3A), 1*VESA Bracket, 1*User Manual
|
|
Other Features
|
Support power-on Start
|
|

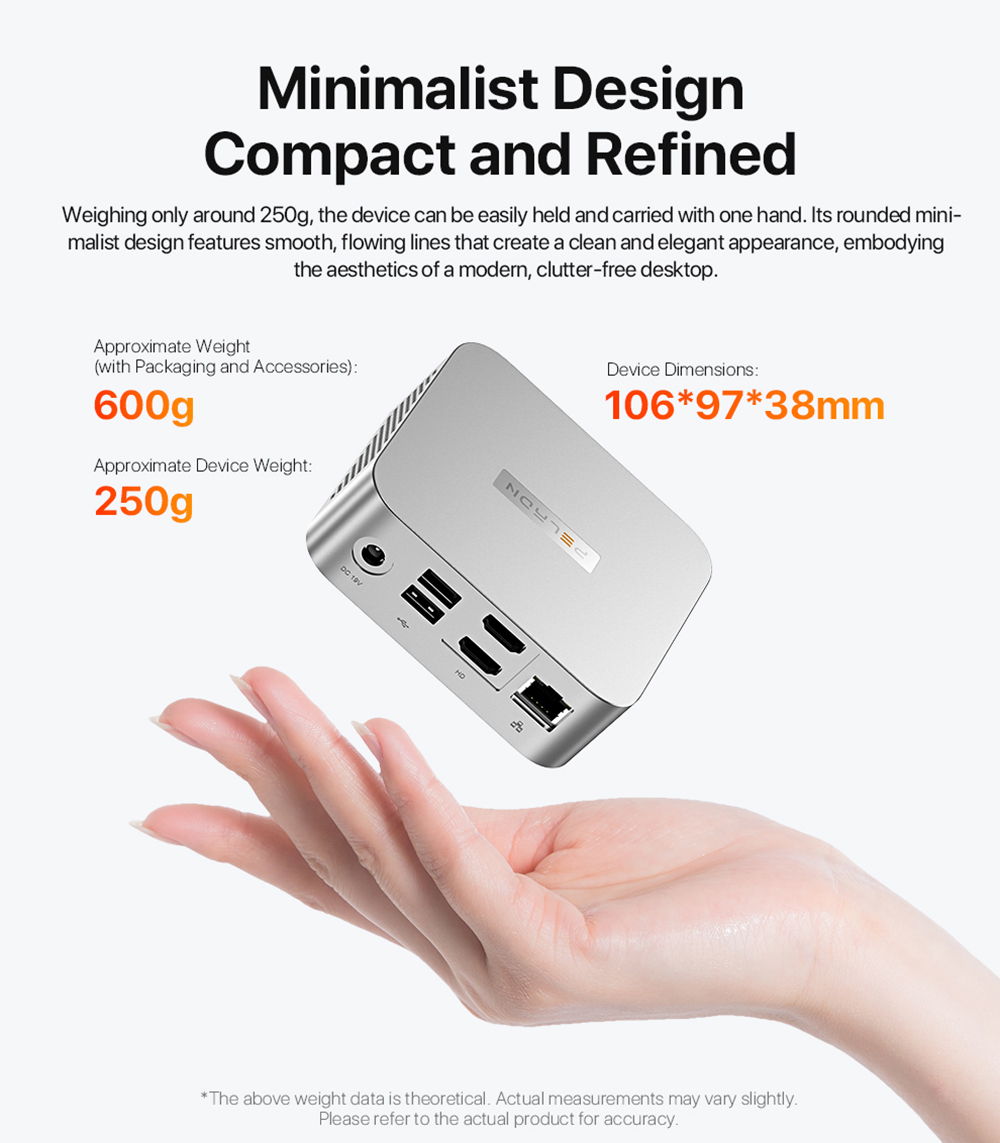

Weight And Size
(Manual Measurement Data For Reference Only)
|
Net Weight: 250g Product Size: 106*97*38mm
Gross Weight: 600g Packing Size: 154*152*98.5mm
|
|
Packing Information
|
Oty/Carton: 20(Carton Size: 320*320*530mm)
|
