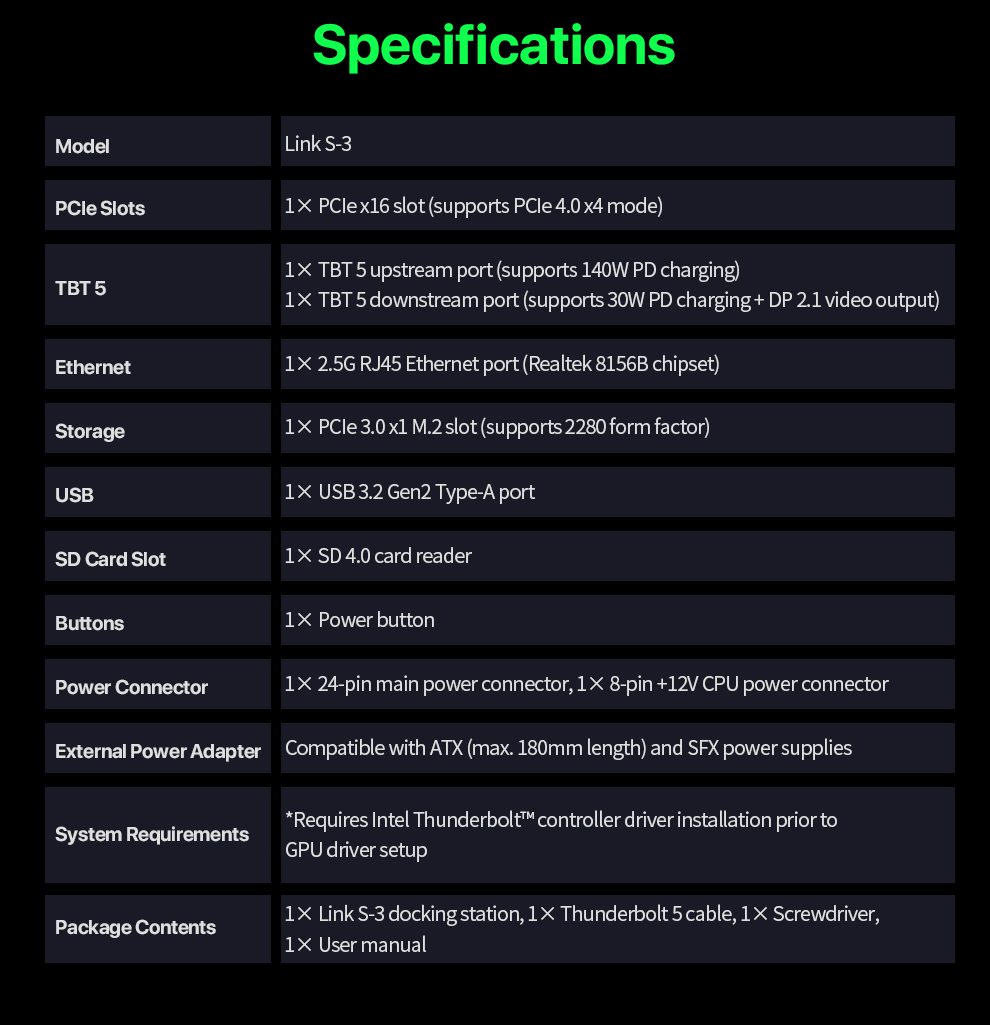

Model
|

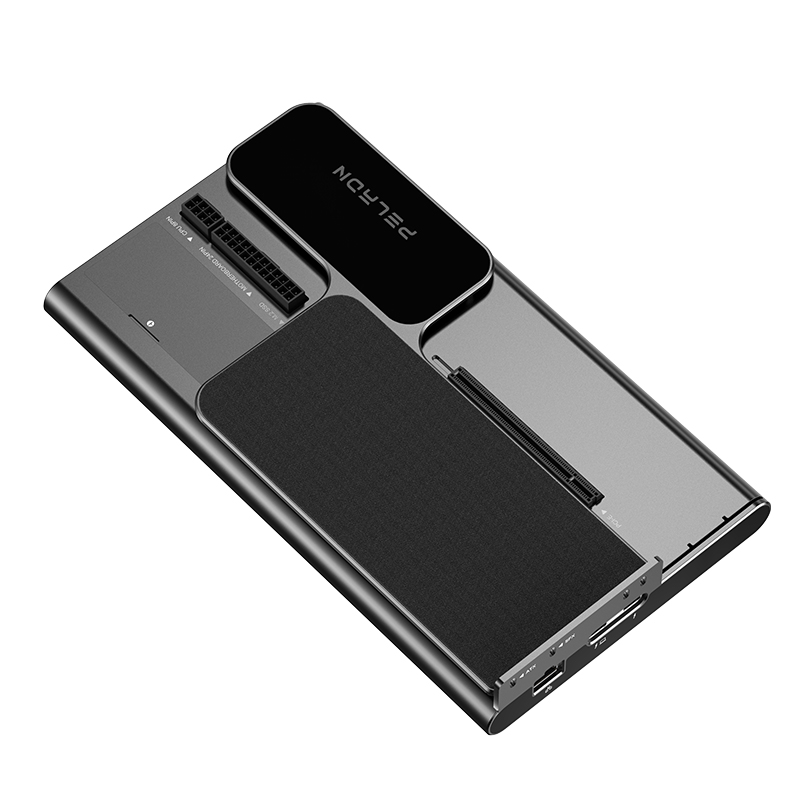

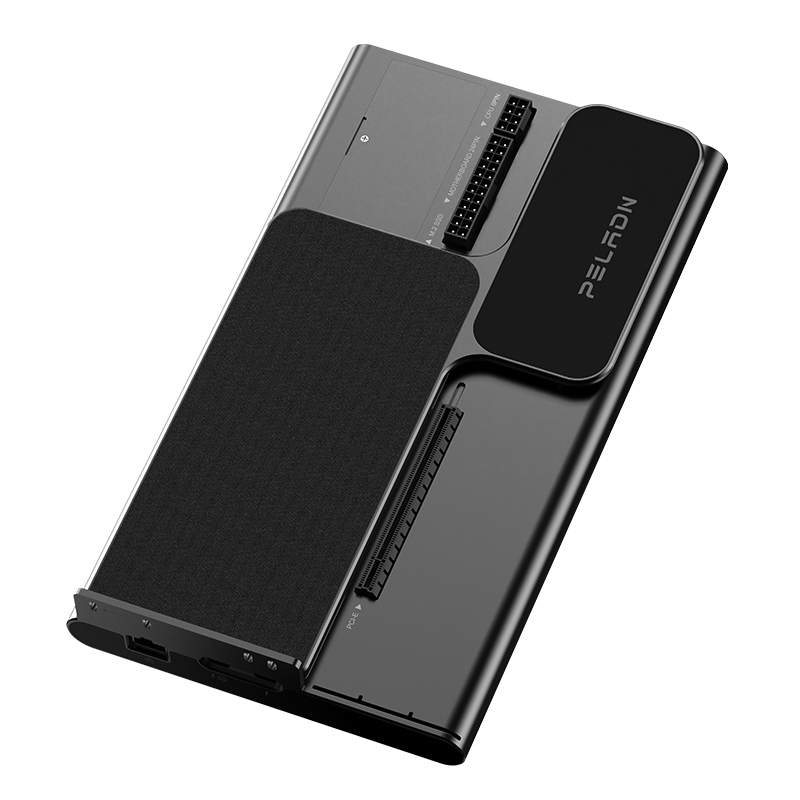

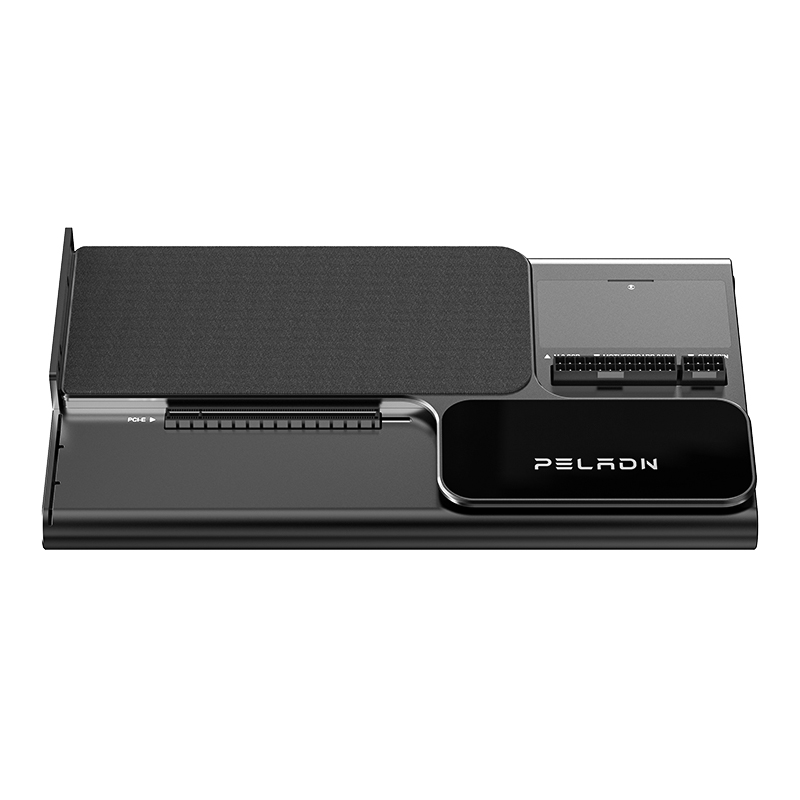

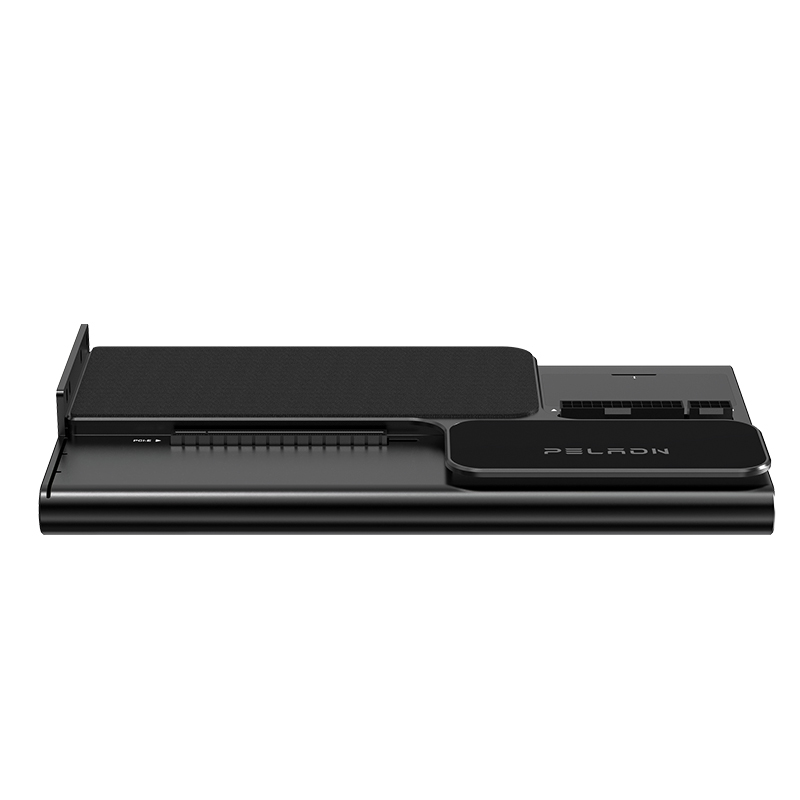

Link S-3
|
|
PCIe Slot
|
1* PCIe x16 slot（support PCIe 4.0 x4 model）
|
|

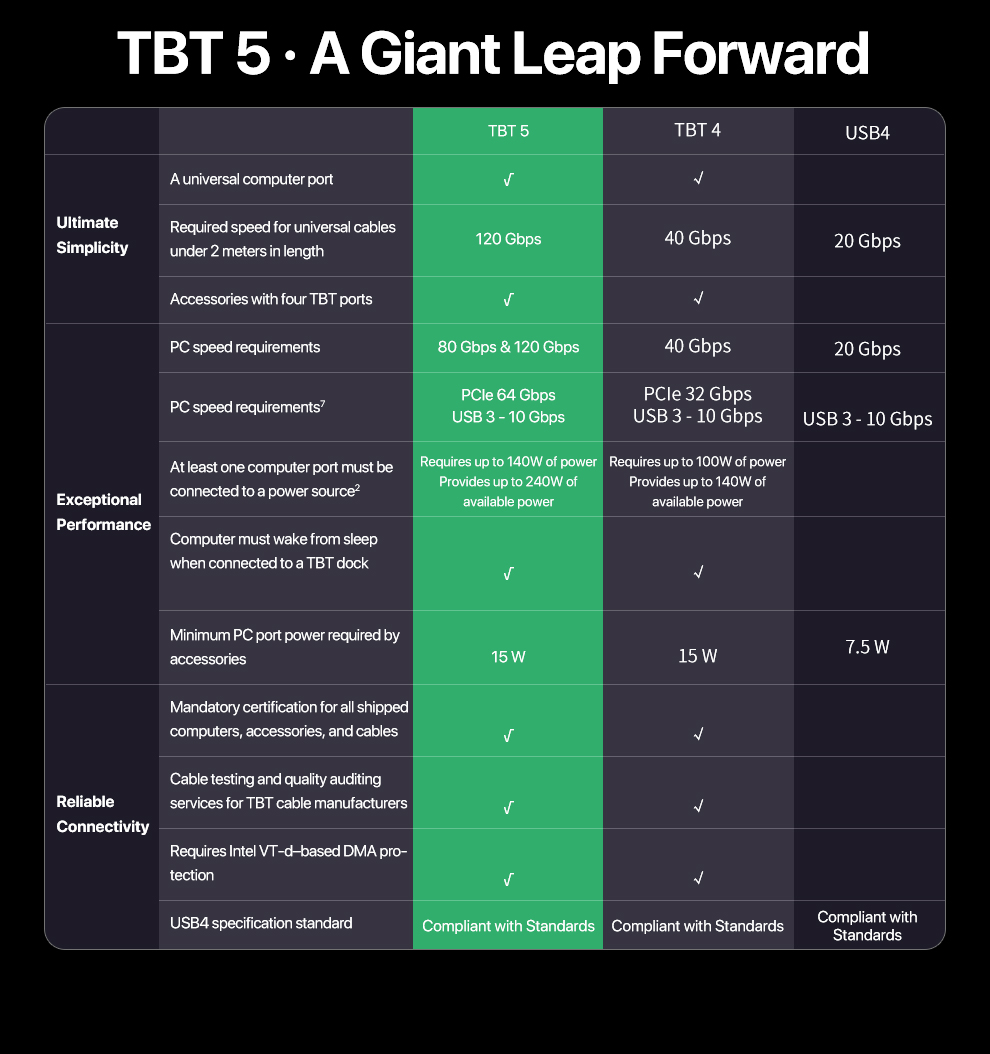

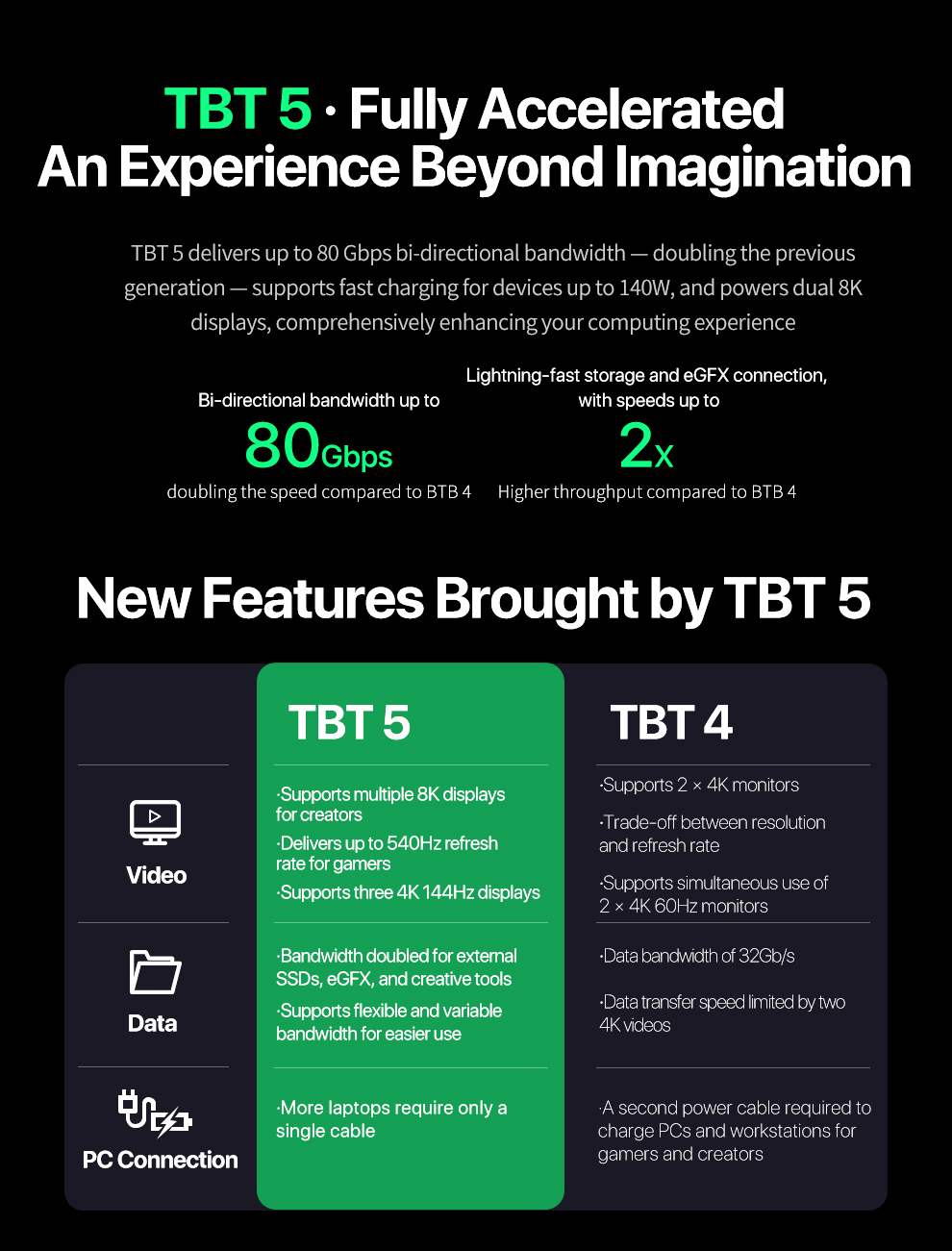

Thunderbolt 5
|
Equipped with JHL9480 Thunderbolt 5 controller chip

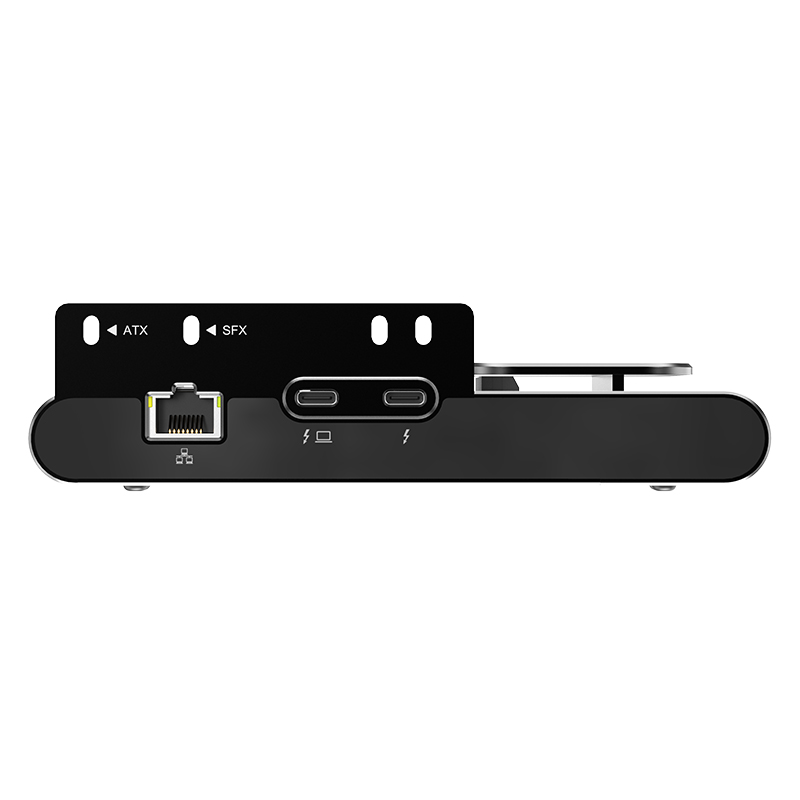

1*Thunderbolt 5 upstream interface (supports PD power supply, up to 140W)
1*lightning 5 downlink interface (supports PD power supply, up to 30W, up to DP 2.1 video signal output)

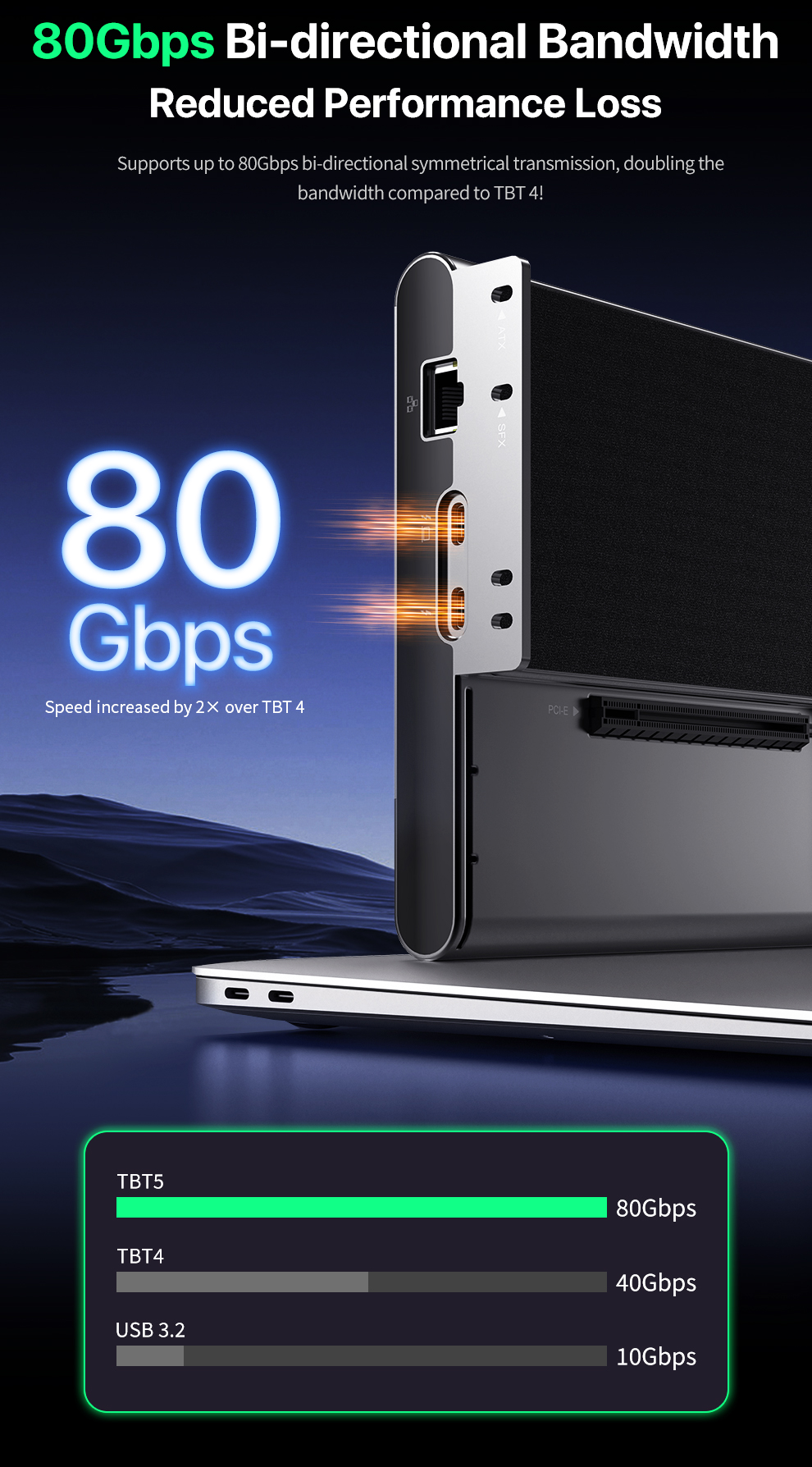

*The uplink interface is used to connect to laptops, Mini PCs and other devices that require extended performance, the downlink interface is used to connect to computer peripherals such as mouse monitors, and the two Thunderbolt 5 interfaces are 80Gbps data transmission bandwidth
|
|
Network
|

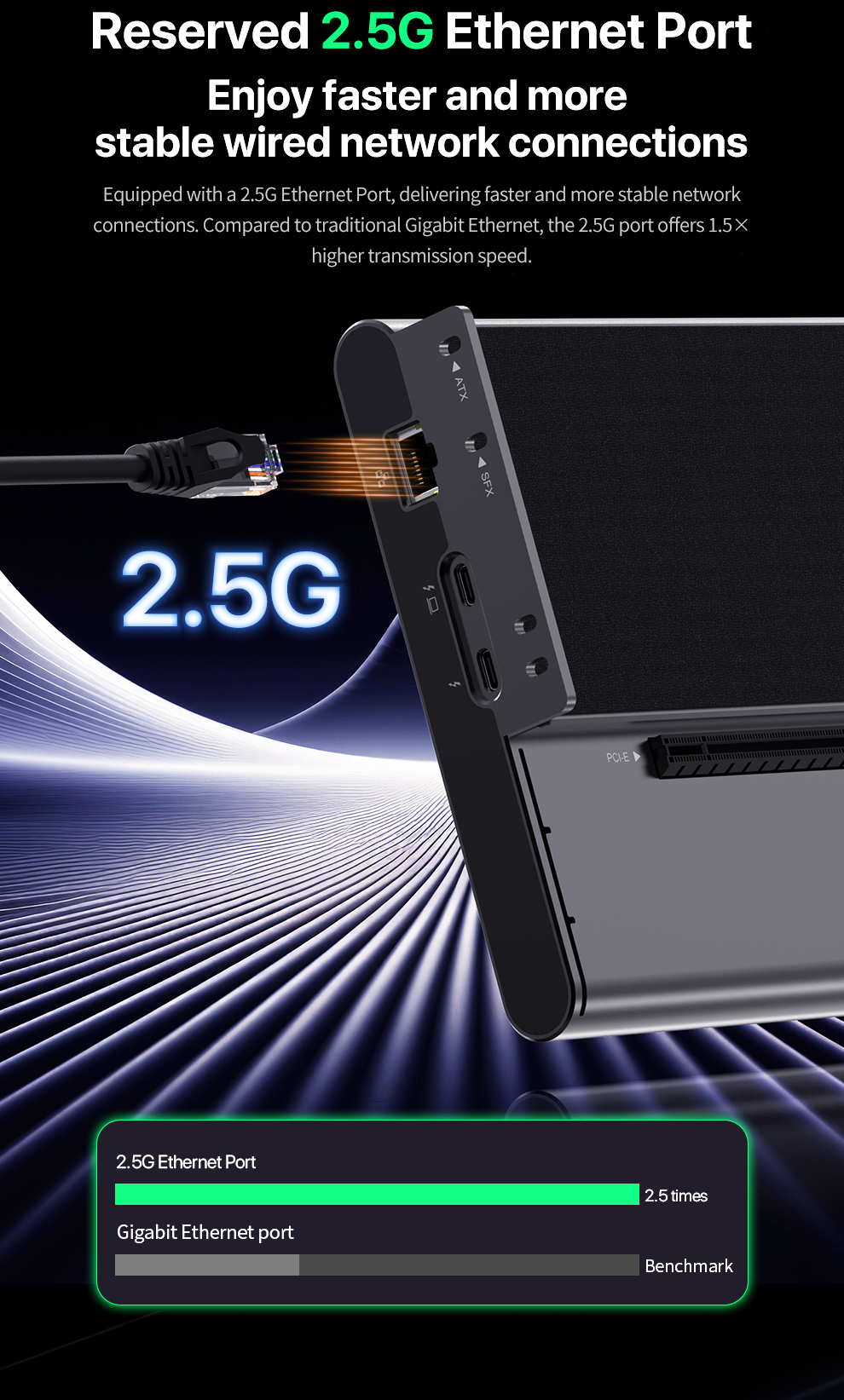

1*RJ45 2.5Gb Ethernet (Realtek 8156B)
|
|
SSD
|

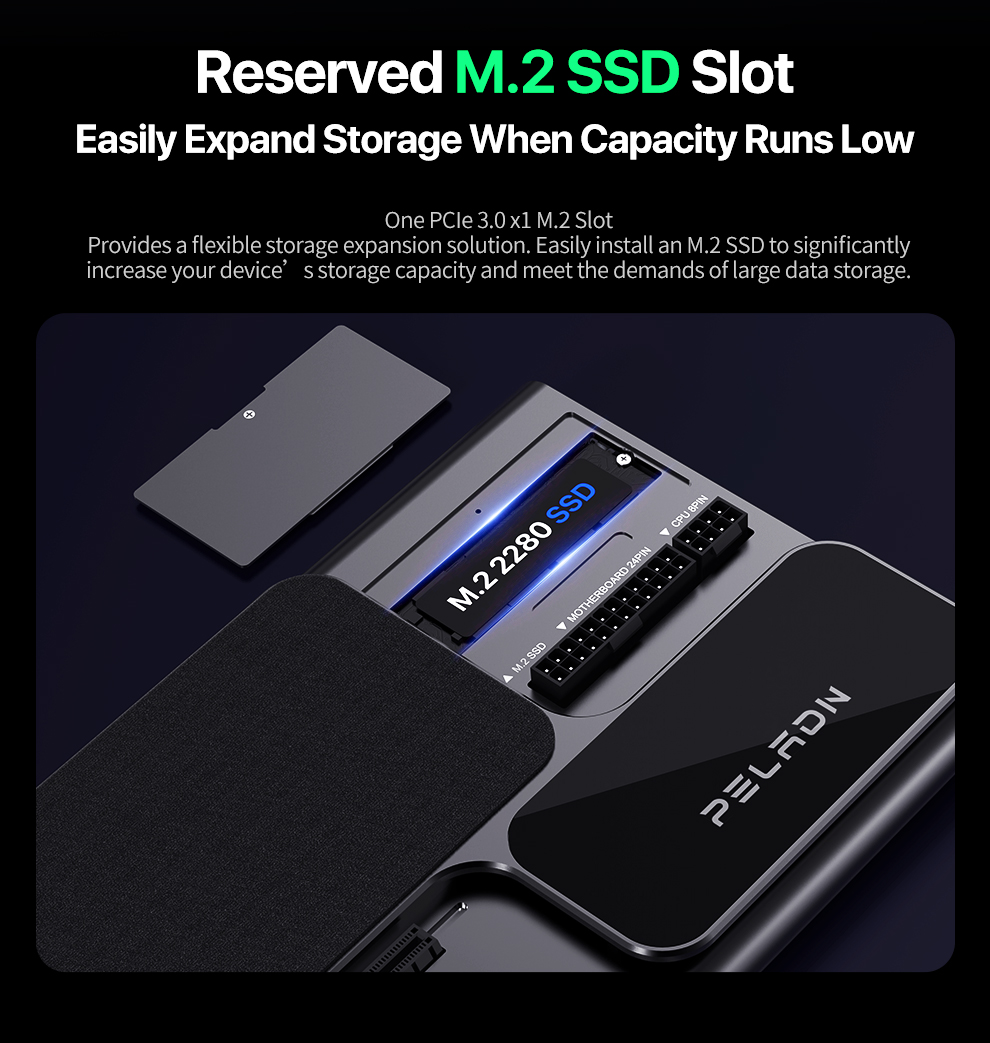

1*PCIe 3.0 x1 M.2 slot, supports installation of 2280 specification M.2 SSD
|
|
USB
|

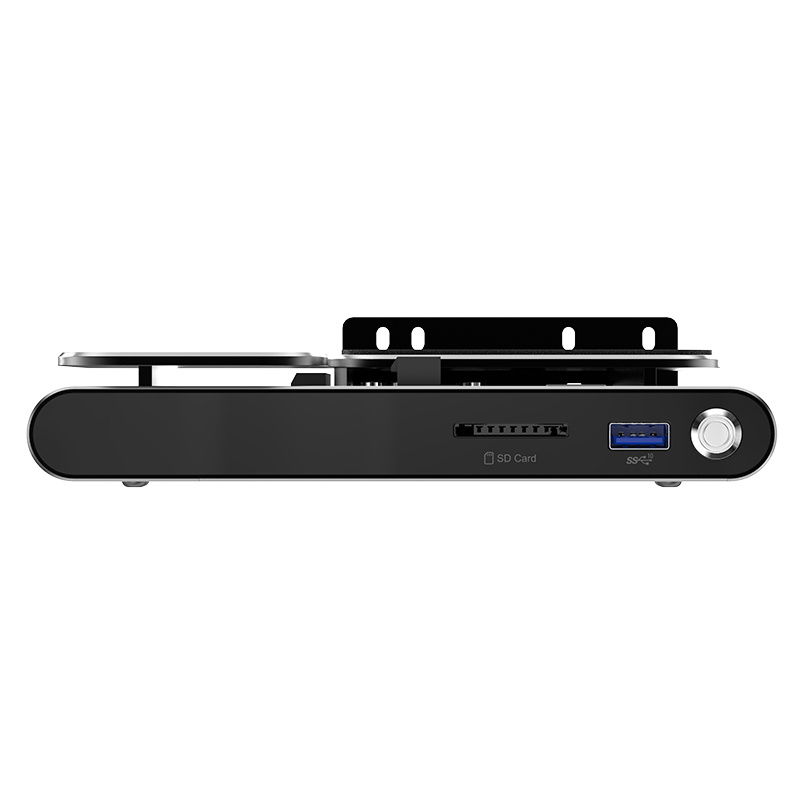

1*USB 3.2 Gen2 Type-A port
|
|
SD card slot
|

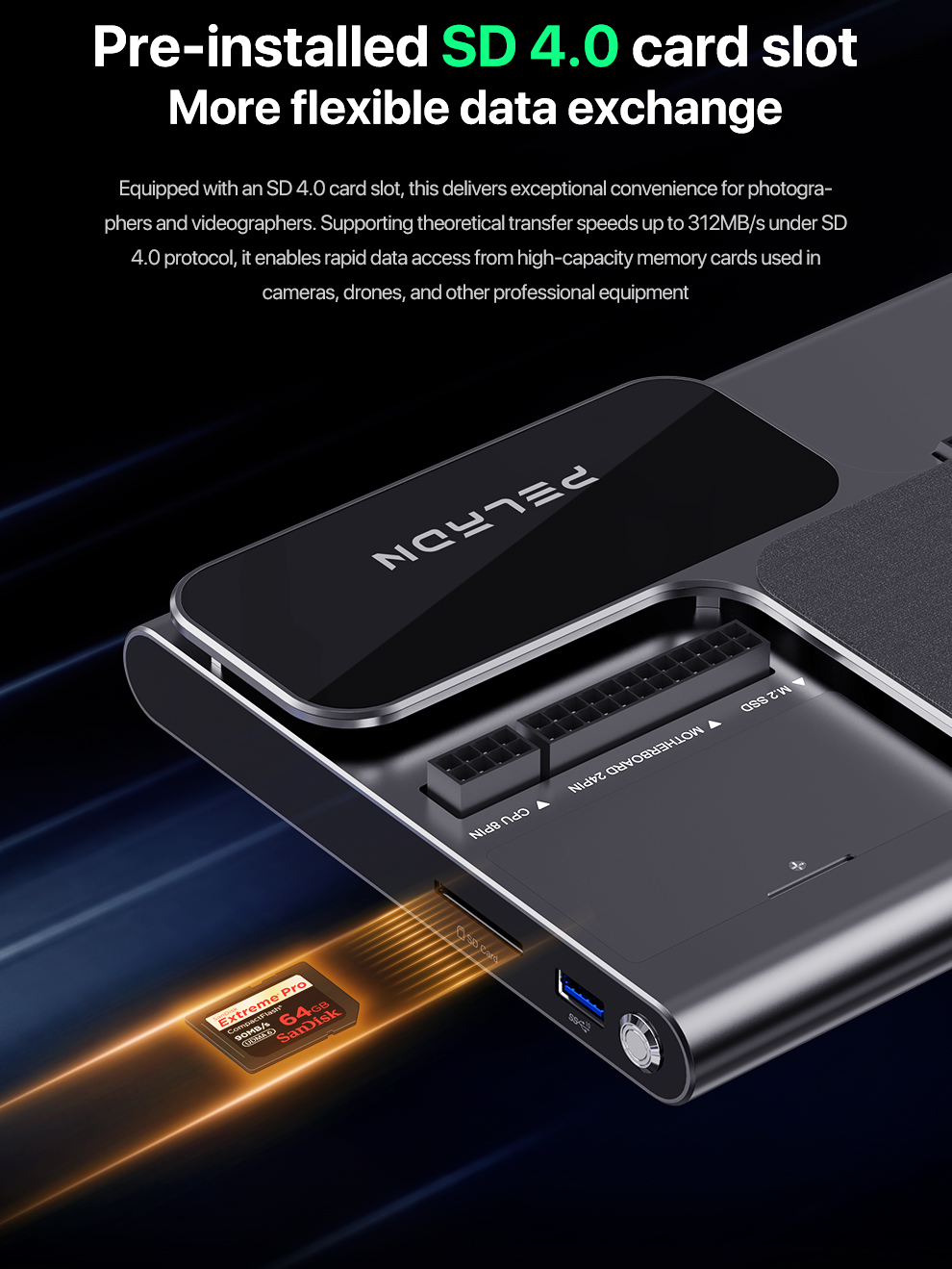

1*SD card slot, support SD 4.0
|
|
Button
|
1*Power switch button
|
|
Power connector
|
1*24-pin Main Power connector, 1*8-pin +12V CPU Power connector
|
|
Power Supply
|

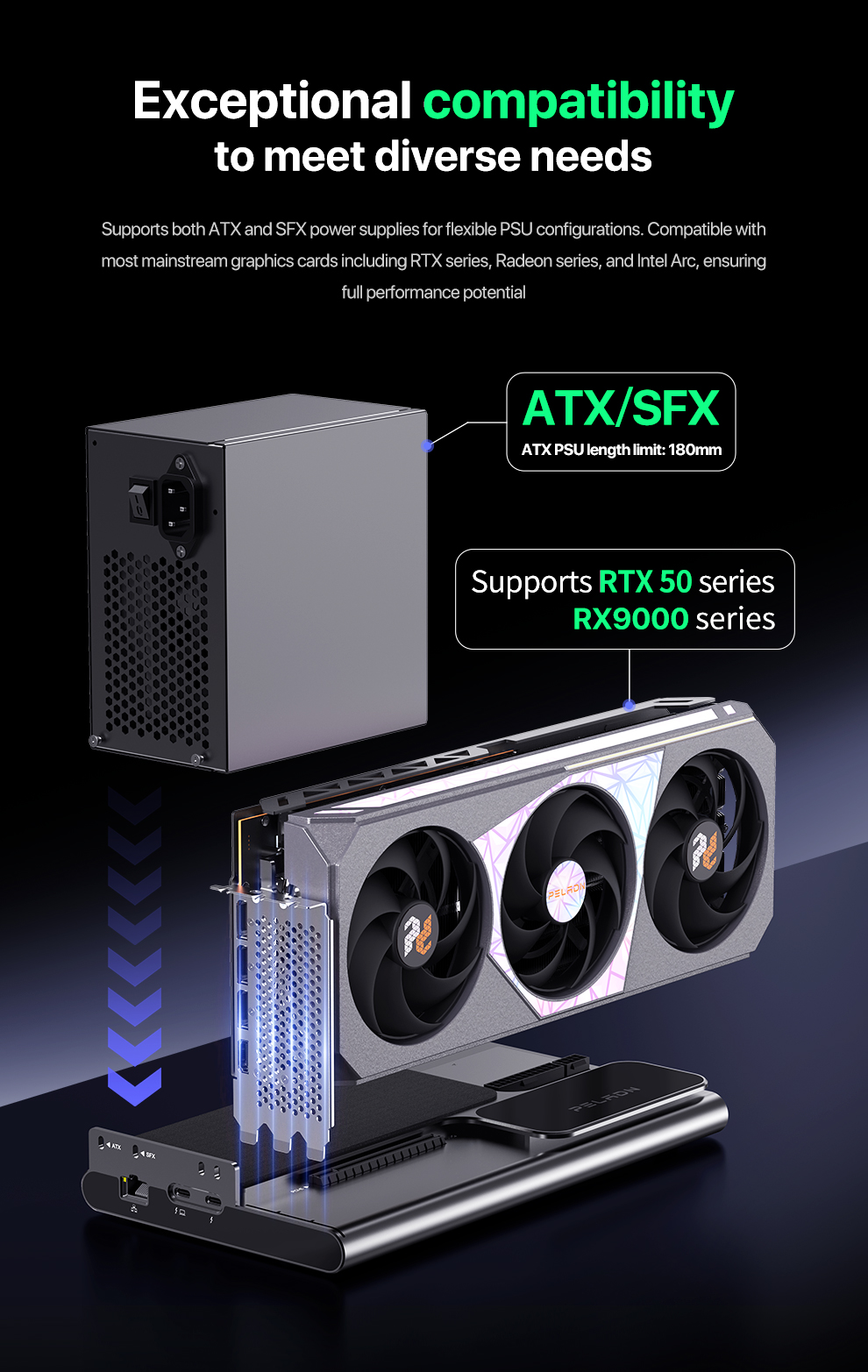

Support ATX (ATX power supply limit: 180mm), SFX
|
|
OS
|
Supports Windows 10 /11
|
|
Packing list
|
1*Link S-3 GPU Dock, 1*Thunderbolt 5 Data Cable, 1*Screwdriver, 1*Instruction Manual
|
|
Weight and size
|
Net Weight：1100g Product size：291*165*41mm
Gross Weight：1500g Packing size：347.5*243*67.5mm
|
|
Packing information
|
Qty/Carton: 8（Carton size：540*270*390mm）
|
