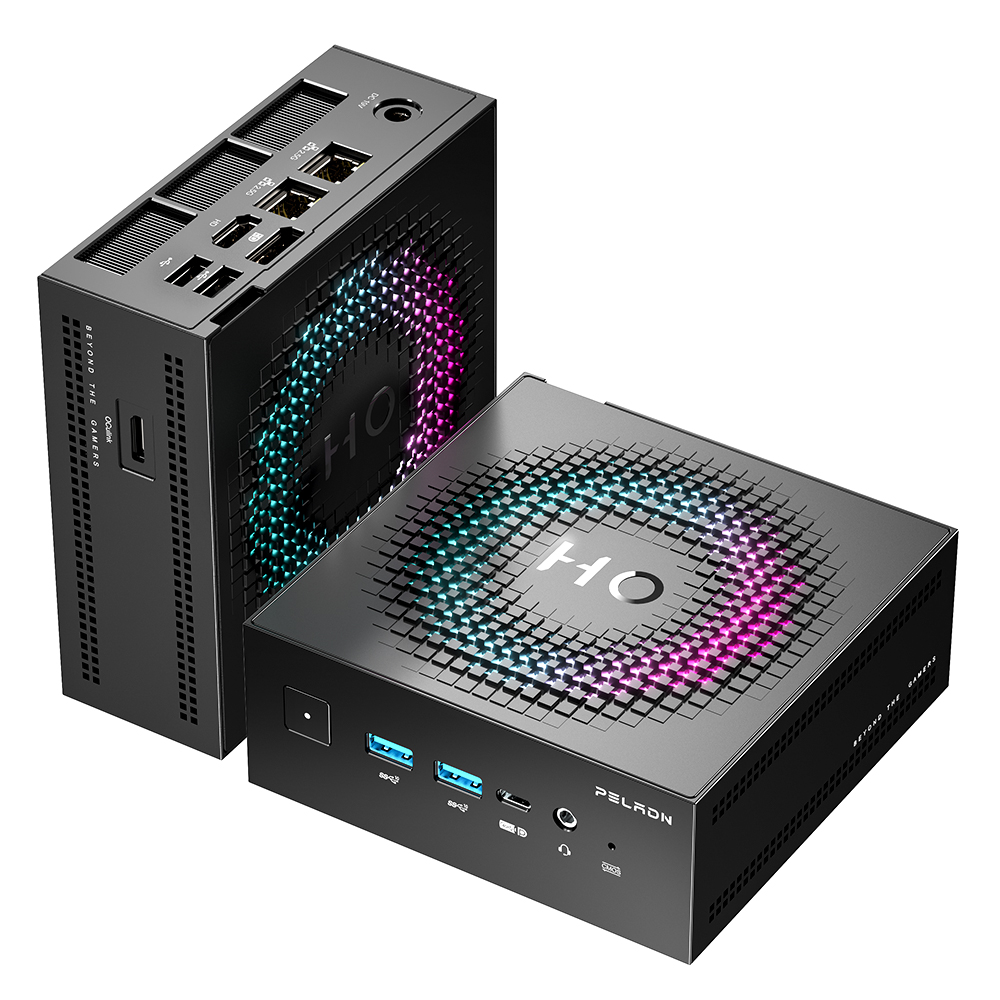

Brand
|
PELADN
|
|
Product Model
|
HO5 HX370
|
|
CPU
|
AMD Ryzen AI 9 HX 370 processor, 12 cores and 24 threads, TSMC 4nm process technology, TDP:54W
Base frequency 2GHz, maximum turbo frequency 5.1GHz
|
|
AI Engine Performance
|
Overall TOPS: 80 TOPS, NPU TOPS: 50 TOPS
|
|
Graphics
|
AMD RadeonTM 890M graphics card, maximum graphics card frequency 2900MHz
|
|
Graphics memory
|
2GB(supports modification of video memory capacityy in BIOS)
|
|
Memory+Storage
|
Onboard LPDDR5X-7500MHz memory, doen not support repleacement or additional install, supports up to 32GB memory customization
2 PCIe 4.0×4 M.2 slots, neither supports SATA protocol M.2 hard drives(Specific memory adn hard drive capacity is subject to actual configuration)
|
|
Network
|
2*2.5G RJ45 wired network ports, equipped with Wi-Fi 7 wireless network card, supports Bluetooth 5.4
|
|

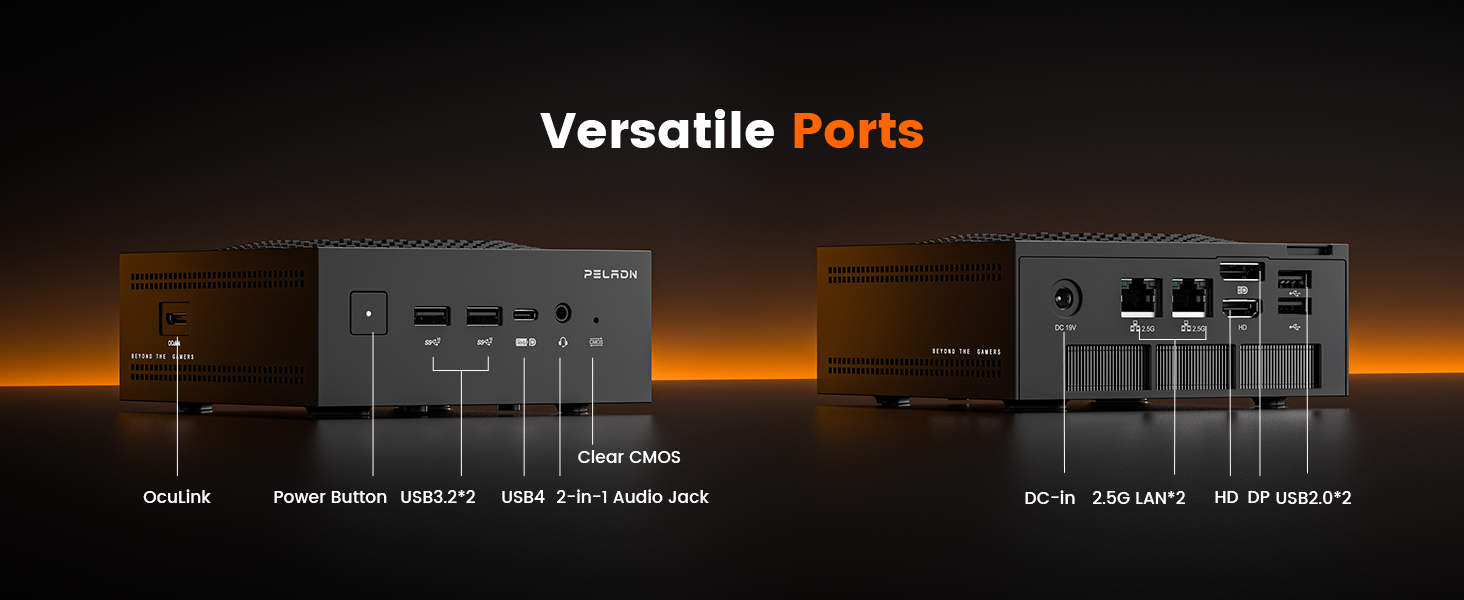

USB
|
1*USB4 20Gbps Type-C port(supports using a PD protocol power adapter to power the Mini PC)
2*USB 3.2 Gen2 Type-A ports, 2*USB2.0 ports
|
|

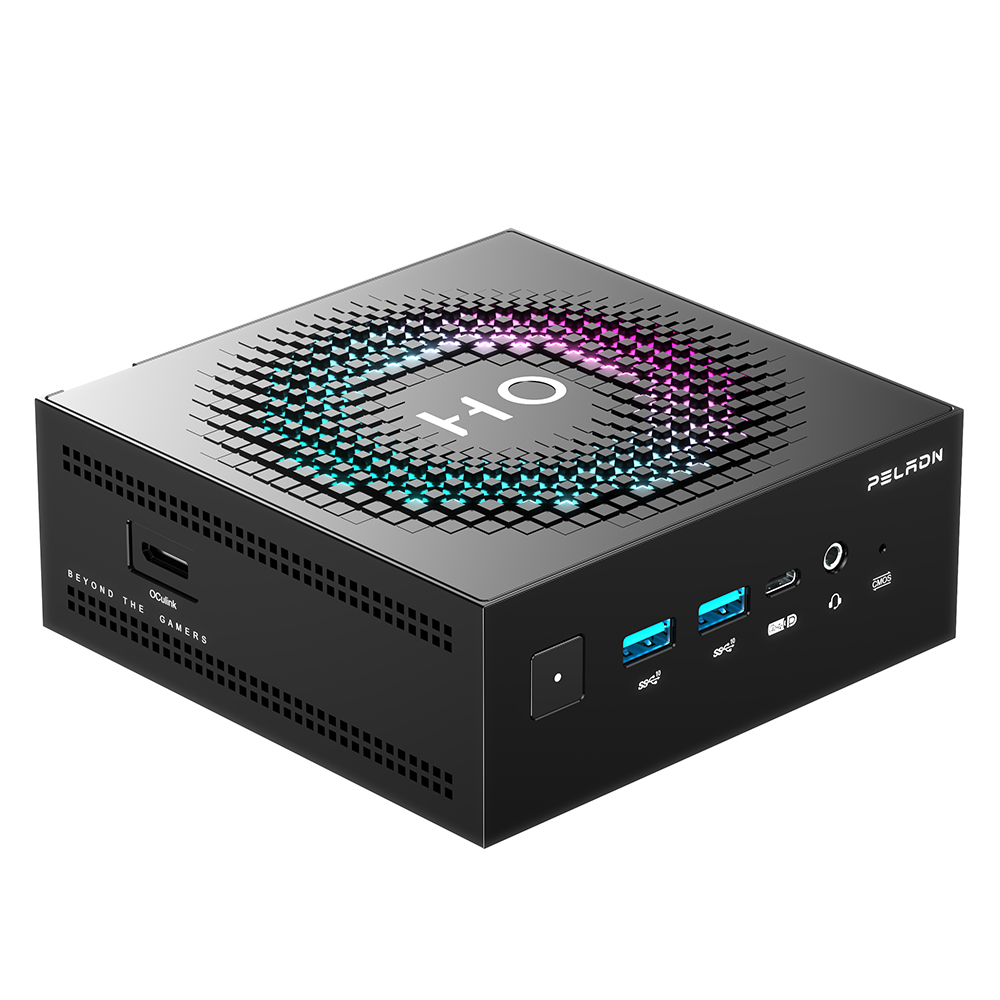

OCuLink
|

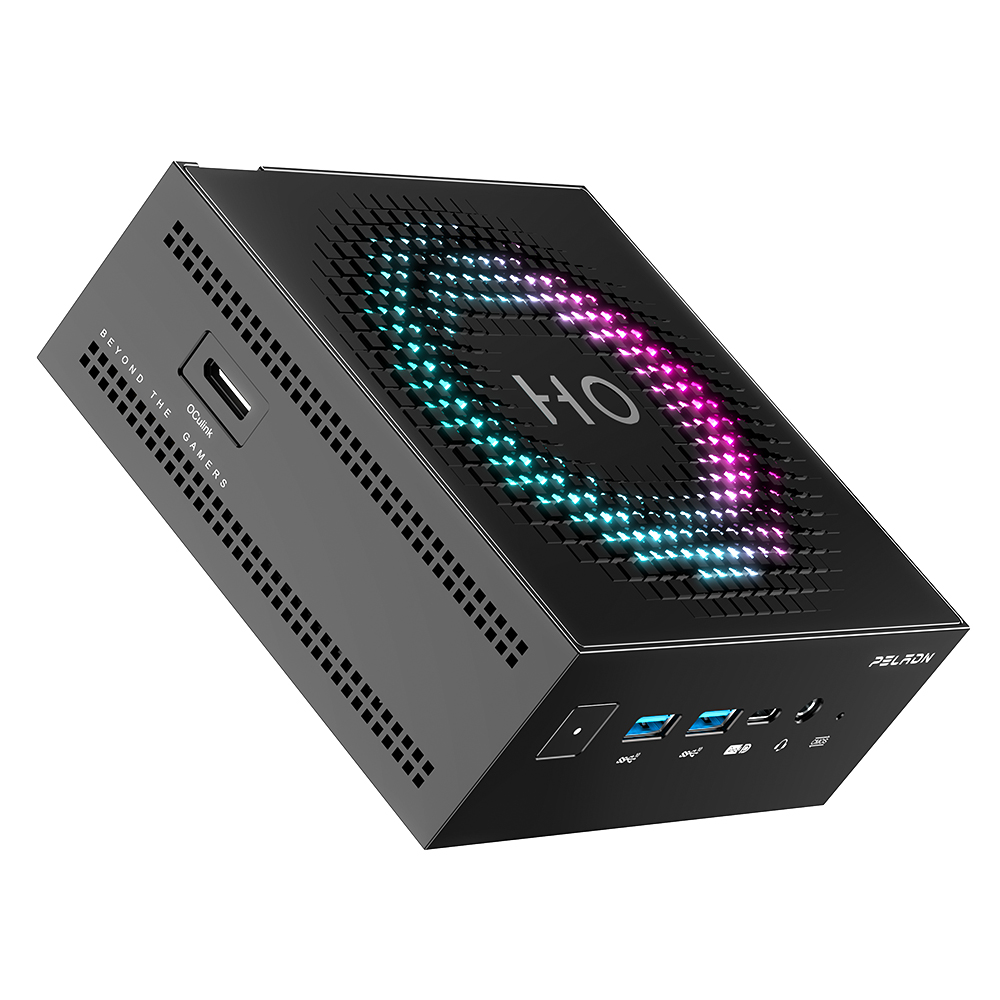

Supports 1(side of the body), PCIe 3.0×4 channel, interface bandwidth 32Gbps
|
|
Video Output Interface
|
1*HD 2.0, supports up to 4K 60Hz Video Output
1*DP 1.2, supports up to 4K 60Hz Video Output
|
|
Audio
|
1*3.5mm Audio Jack headphone and microphone two-in-one interface(front panel)
|
|
Power Interface
|
1*DC-in Power Adapter Port(5.5mm×2.5mm)
|
|
Button
|
1*power switch button, 1*Clear CMOS button
|
|
Shell material/color
|
Plastic(black)
|
|
RGB
|

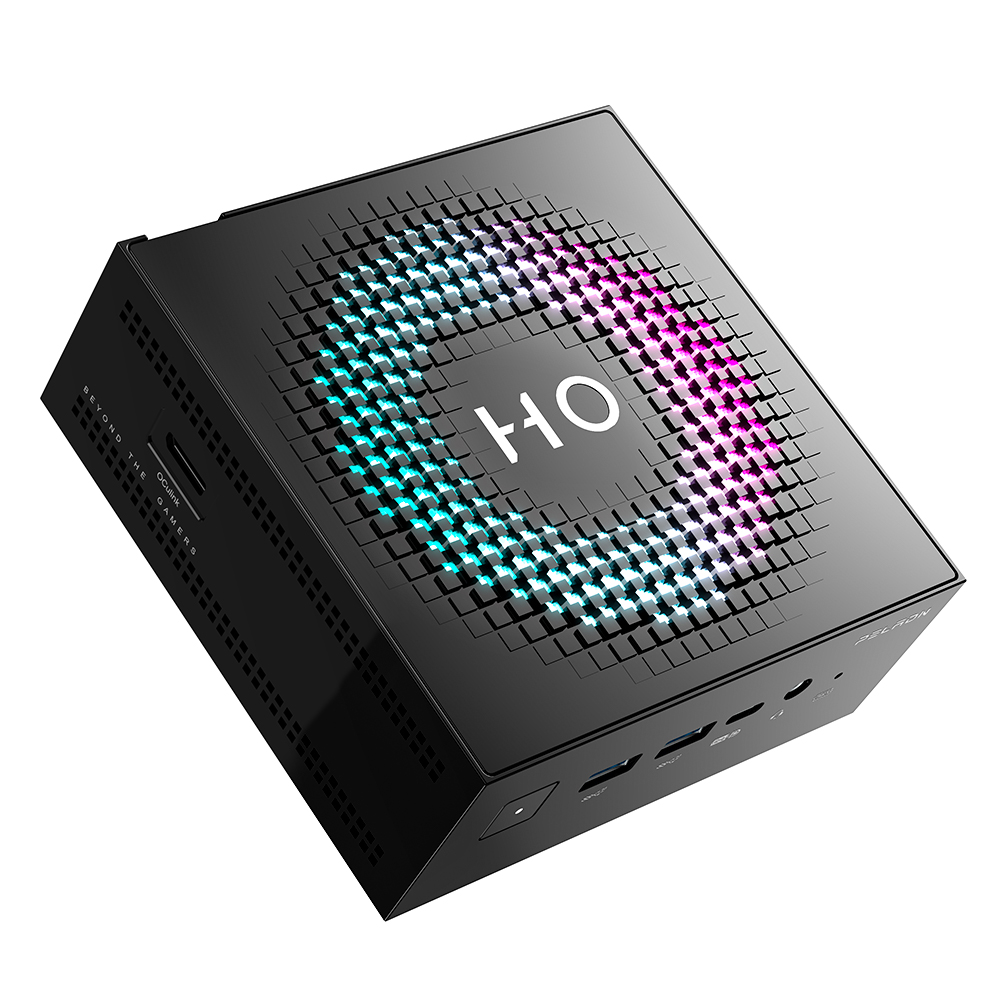

Support(Touch the letter O on the top cover to switch ROG color or turn off RGB light)
|
|
OS
|
Pre-installed Win 11 pro operating system(supports installation of other operating systems such as win 10/Linux)
|
|
Power Adapter
|
Input: 100-240V AC, 50/60Hz, Output: 19V 6.3A
|
|
Work Environment
|
Temp: -20℃--60℃, RH: 10%--90%
|
|
Warehouse Environment
|
Temp: -20℃--60℃, RH: 10%-90%
|
|
Packing list
|

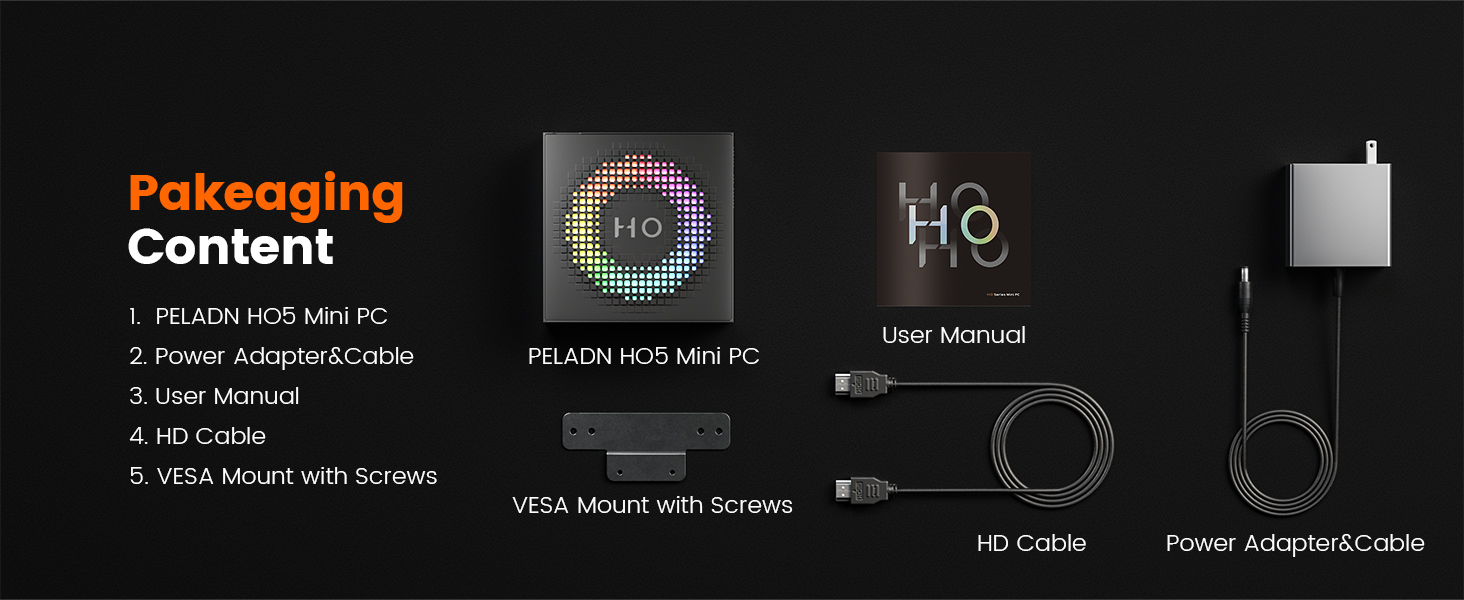

1*mini PC, 1*HD cable, 1*power adapter(19V 6.3A), 1*VESA Bracket, 1*user manual
|
|
Other Features
|
Support power-on start
|
|
Weight and size(Manual measurement data for reference only)
|
Net Weight: 1000g Product size: 130*130*55mm
|
|
|
Gross Weight: 2100g Packing Size: 157*158*112.5mm
|
|
packing information
|
Qty/Carton:12(Carton size: 340*340*362mm)
|
