HO Series
Home > Mini PC > by Series > HO Series
HO5 155H
HO5 155H HO5 155H HO5 155H HO5 155H HO5 155H HO5 155H

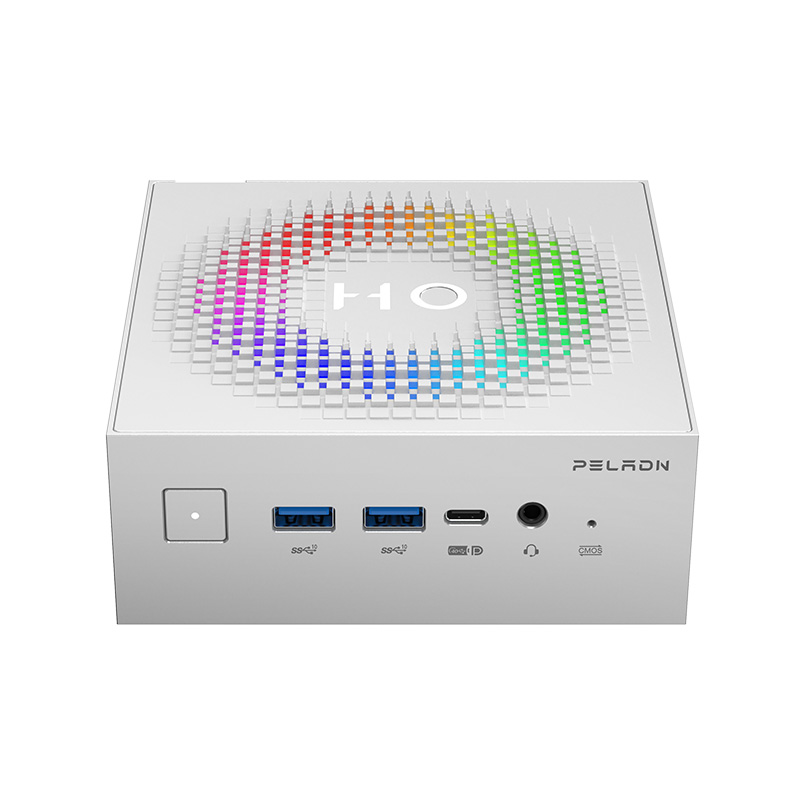

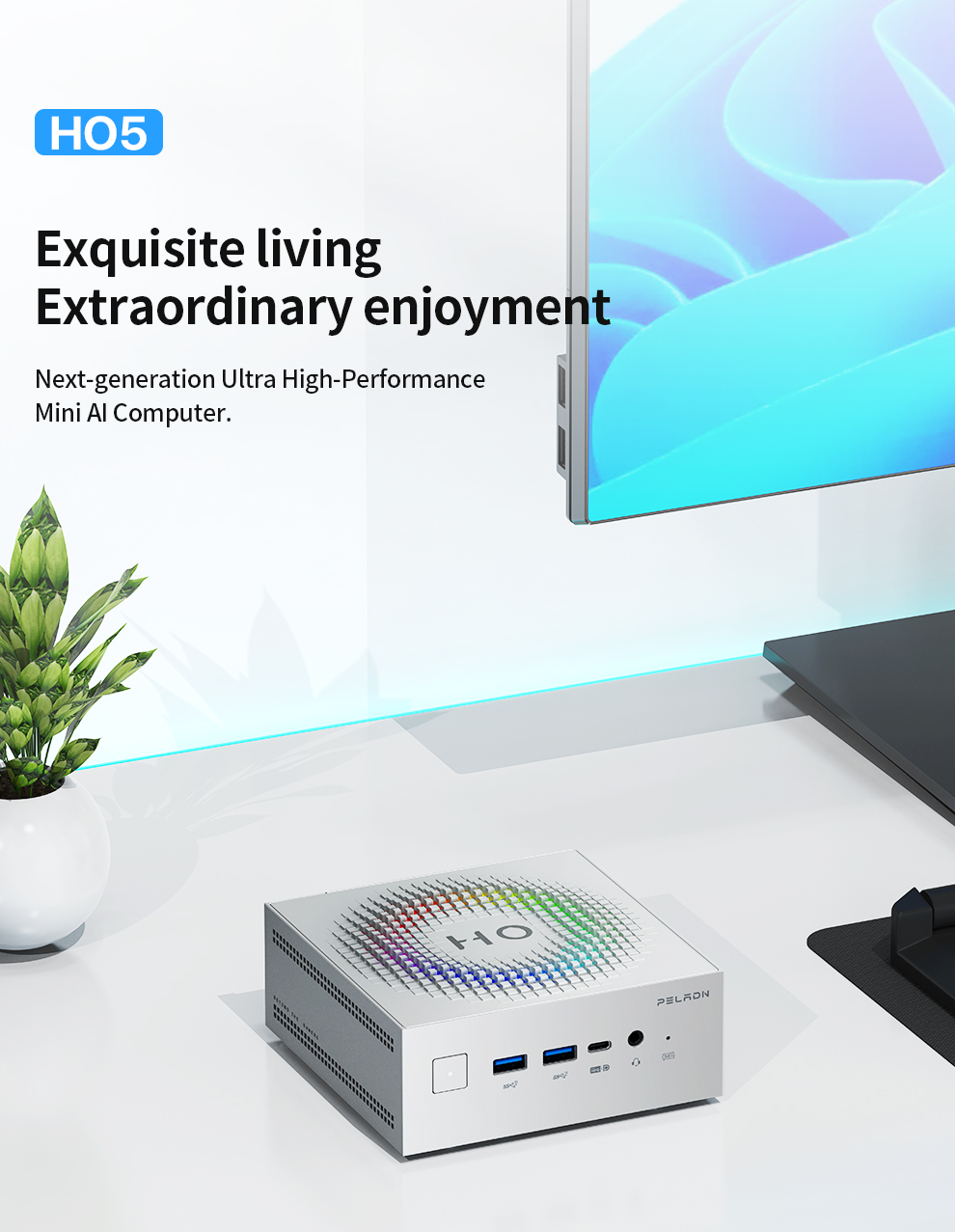

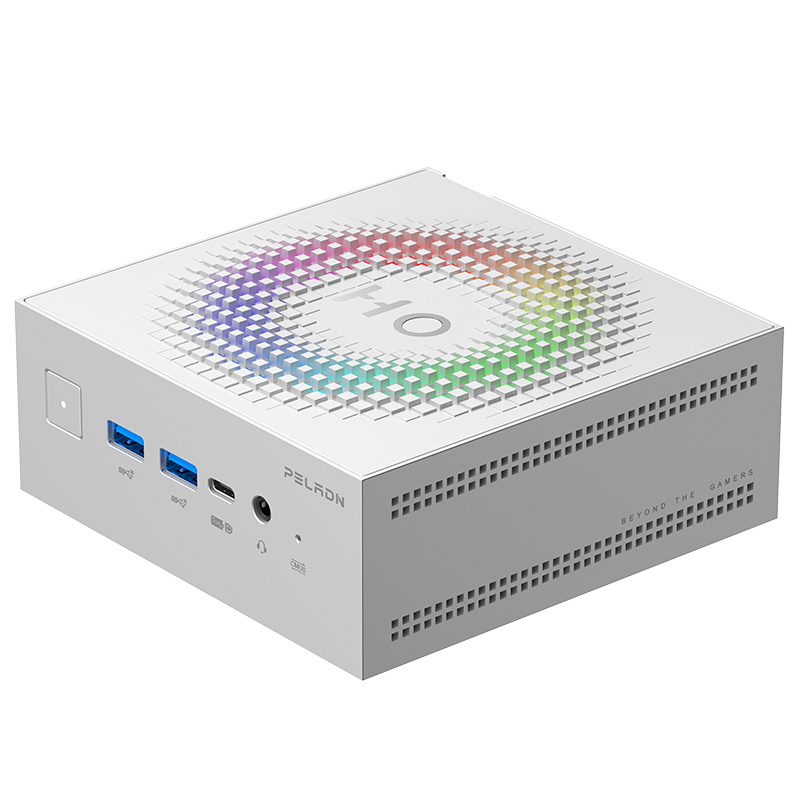

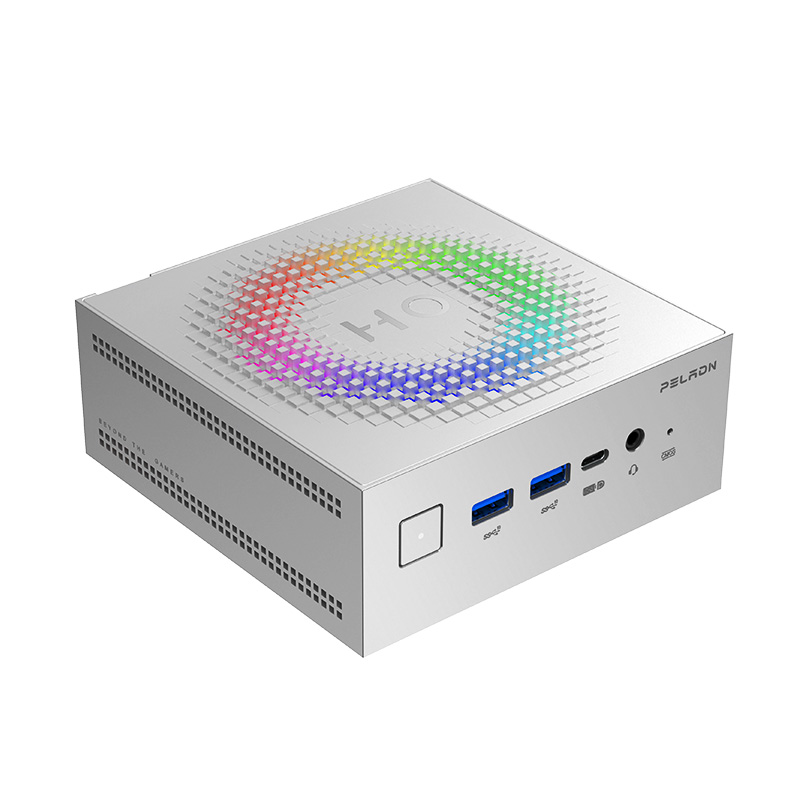

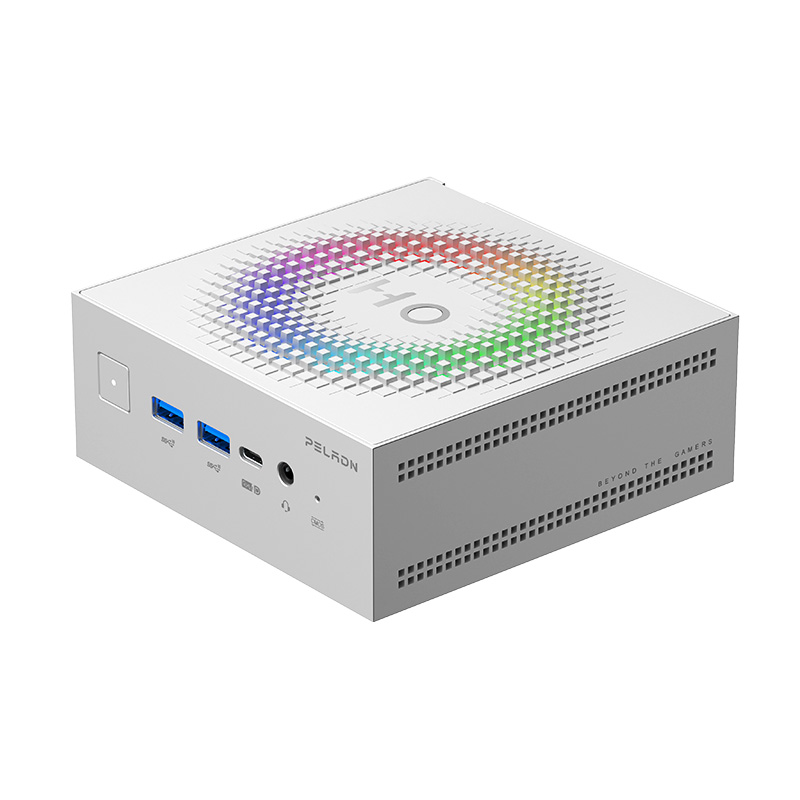

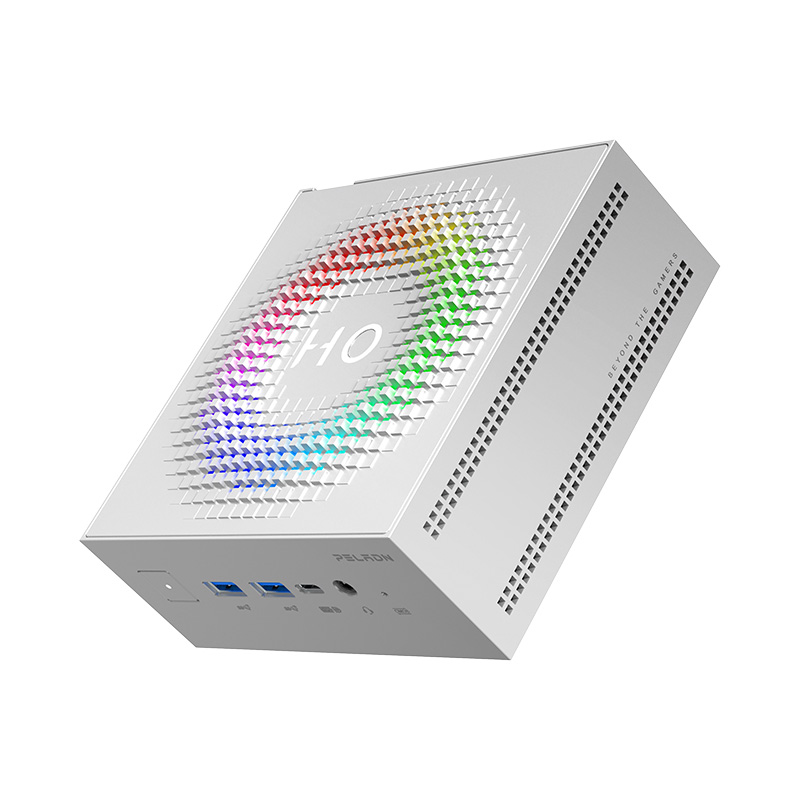

HO5 155H Mini PC
  • Product ModelHO5 155H
  • CPUIntel Core Ultra 7 155H
  • Threads16
  • SystemWindows 11 Pro
    • Inquiry
    Overview Product Parameter
    Overview
    Product Parameter

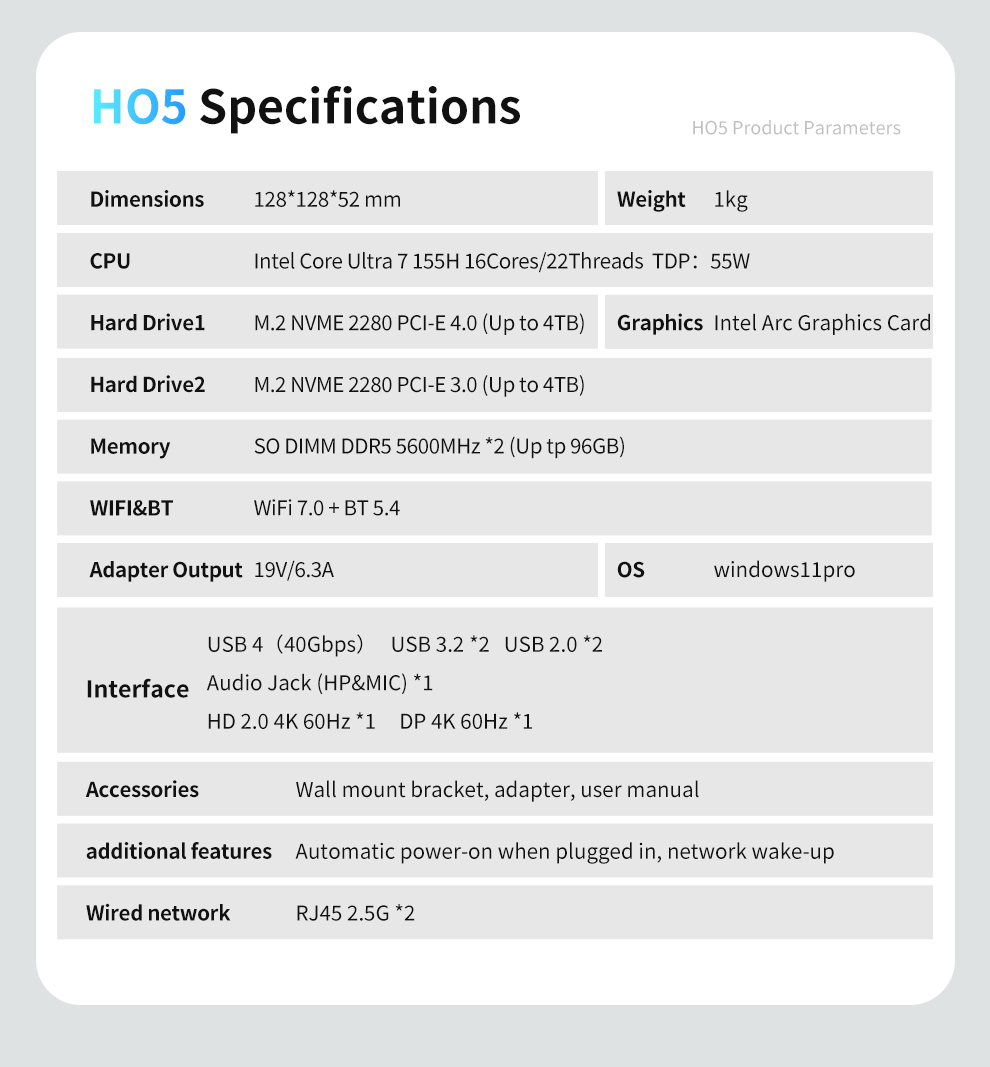

    Brand
    		 PELADN
    Product Model HO5 155H
    CPU
    Intel Core Ultra 7 155H, 16 cores and 22 threads, TDP：55W
    Max.Boost Clock：4.8GHz
    Graphics Intel® Arc™ Graphics Card
    Memory+Storage

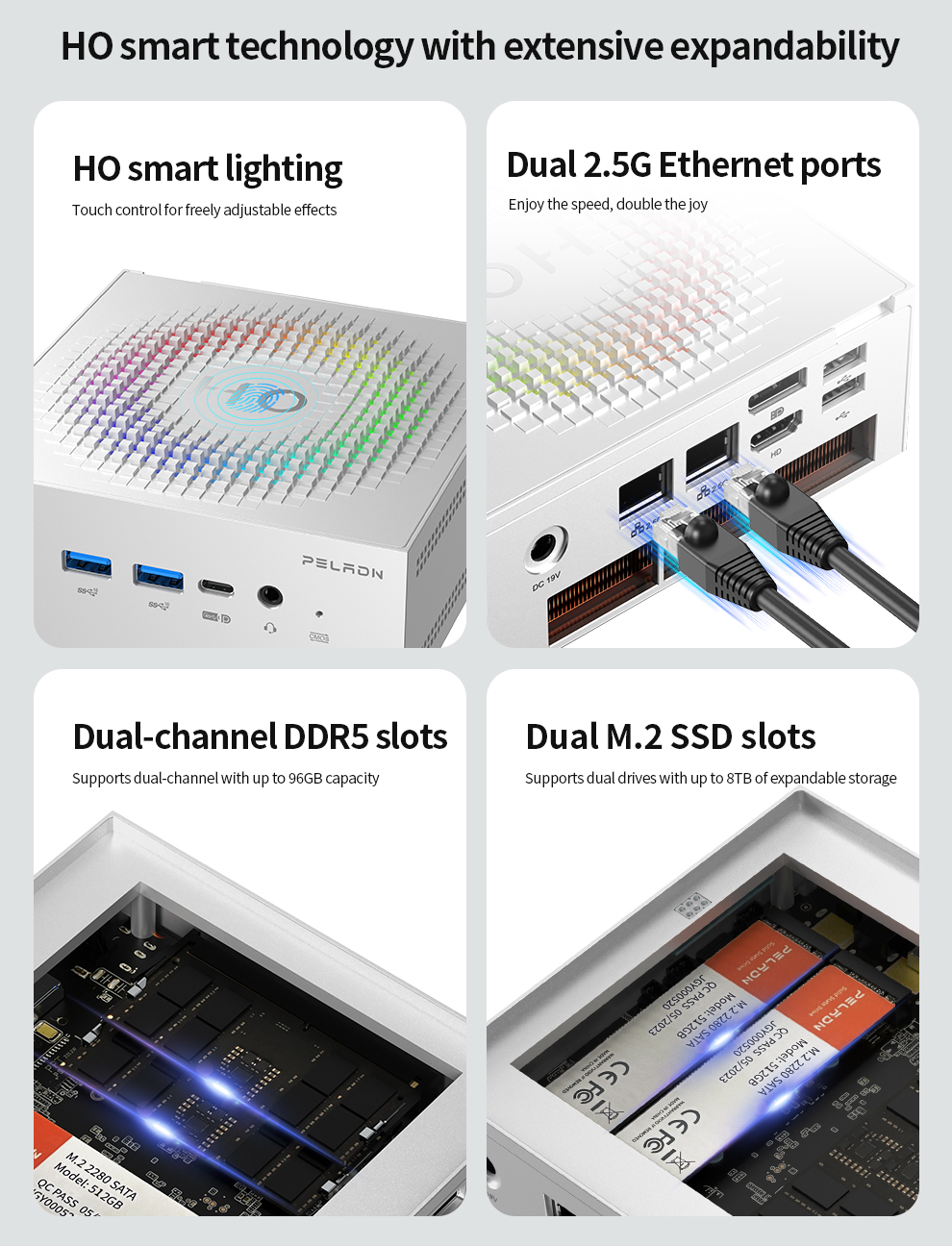

    16G / 5600MHz Maximum support 96GB
    1*PCIe 4.0×4 M.2 slots NVME SSD 2280 Maximum support 4TB
    1*PCIe 3.0×4 M.2 slots NVME SSD 2280 Maximum support 4TB

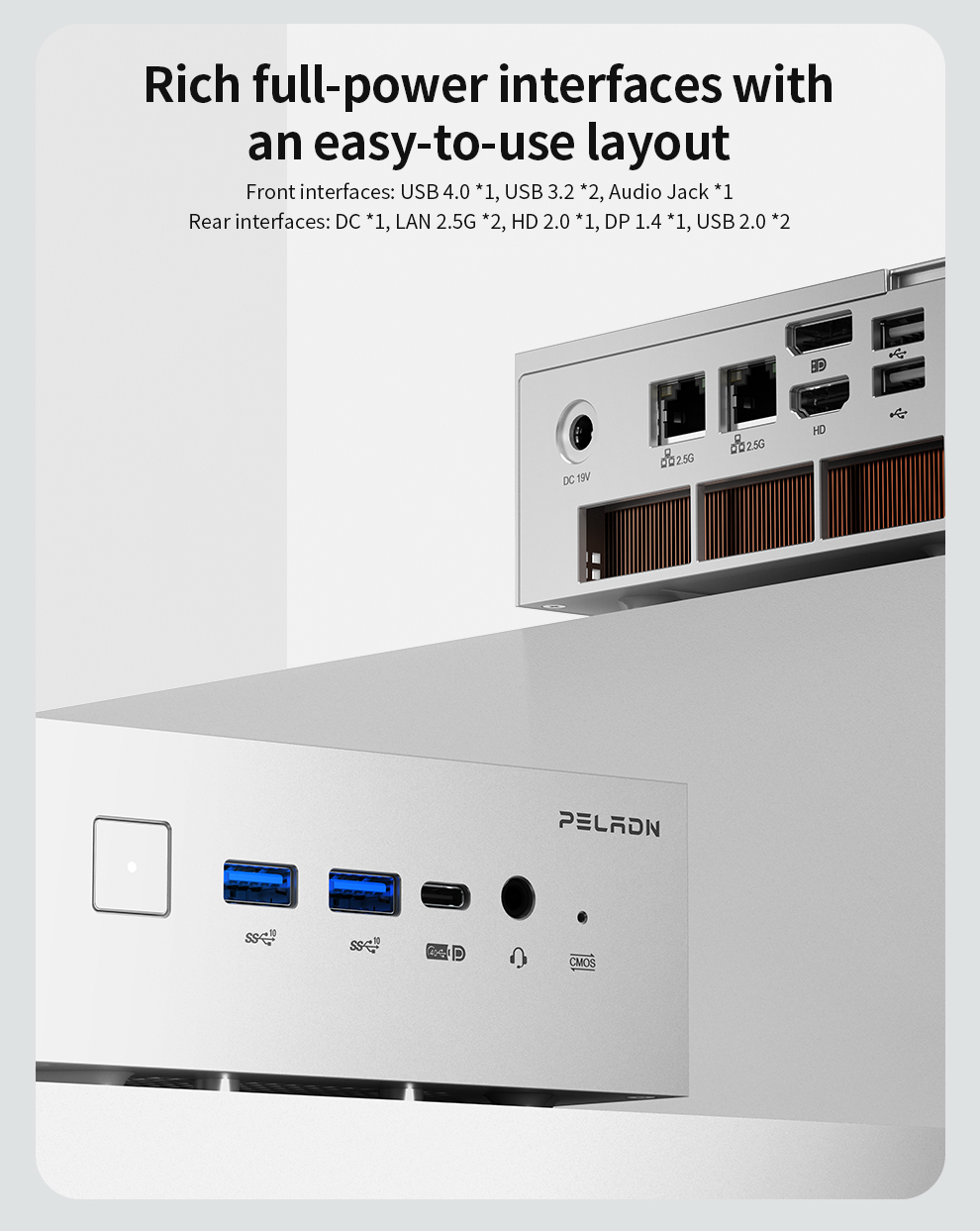

    Network 2*2.5G RJ45 wired network ports, equipped with Wi-Fi 7 wireless network card, supports Bluetooth 5.4
    USB
    1*USB4 40Gbps Type-C port(supports using a PD protocol power adapter to power the Mini PC)
    2*USB 3.2 Gen2 Type-A ports, 2*USB2.0 ports
    Video Output Interface
    1*HD 2.0, supports up to 4K 60Hz Video Output
    1*DP 1.4, supports up to 4K 60Hz Video Output
    Audio 1*3.5mm Audio Jack headphone and microphone two-in-one interface(front panel)
    Power Interface 1*DC-in Power Adapter Port(5.5mm×2.5mm)
    Button 1*power switch button, 1*Clear CMOS button
    Shell material/color Plastic(black)

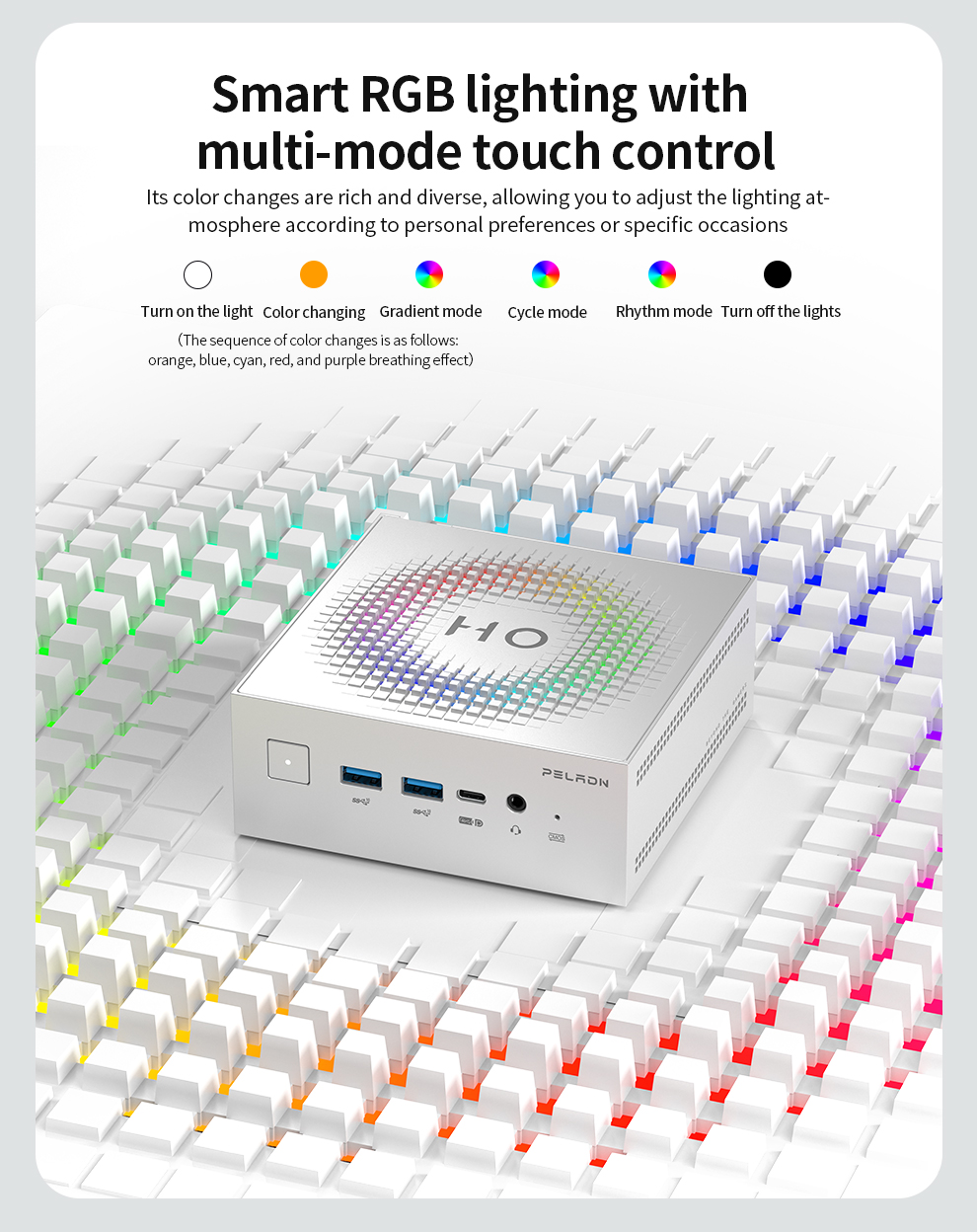

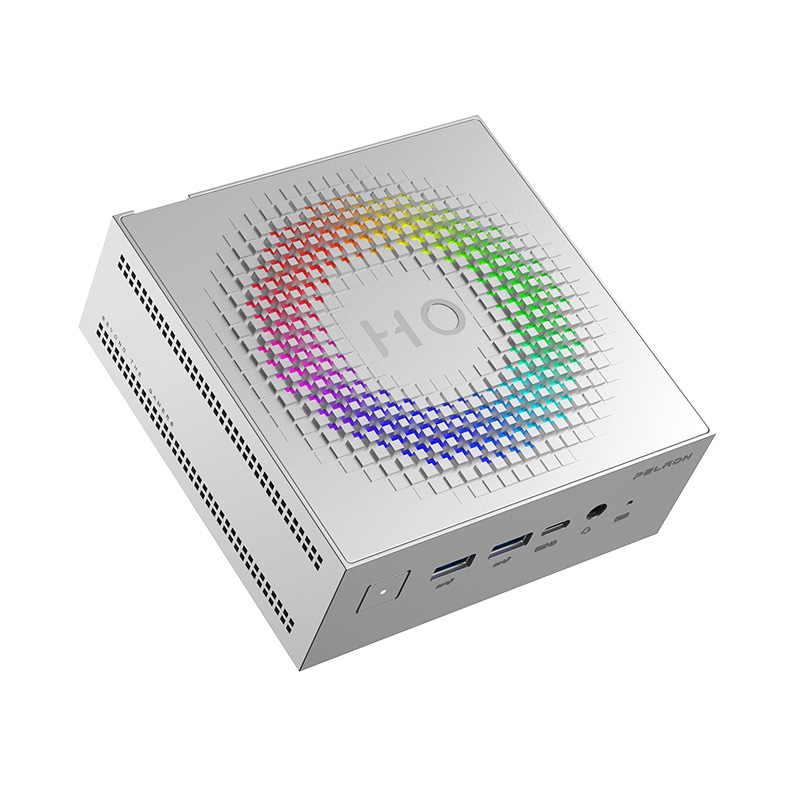

    RGB Support(Touch the letter O on the top cover to switch ROG color or turn off RGB light)
    OS Pre-installed Win 11 pro operating system(supports installation of other operating systems such as win 10/Linux)
    Power Adapter Input: 100-240V AC, 50/60Hz, Output: 19V 6.3A
    Work Environment Temp: -10℃--45℃, RH: 30%--90%
    Warehouse Environment Temp: -20℃--60℃, RH: 10%-90%
    Packing list 1*mini PC, 1*HD cable, 1*power adapter(19V 6.3A), 1*VESA Bracket, 1*user manual
    Other Features Support power-on start

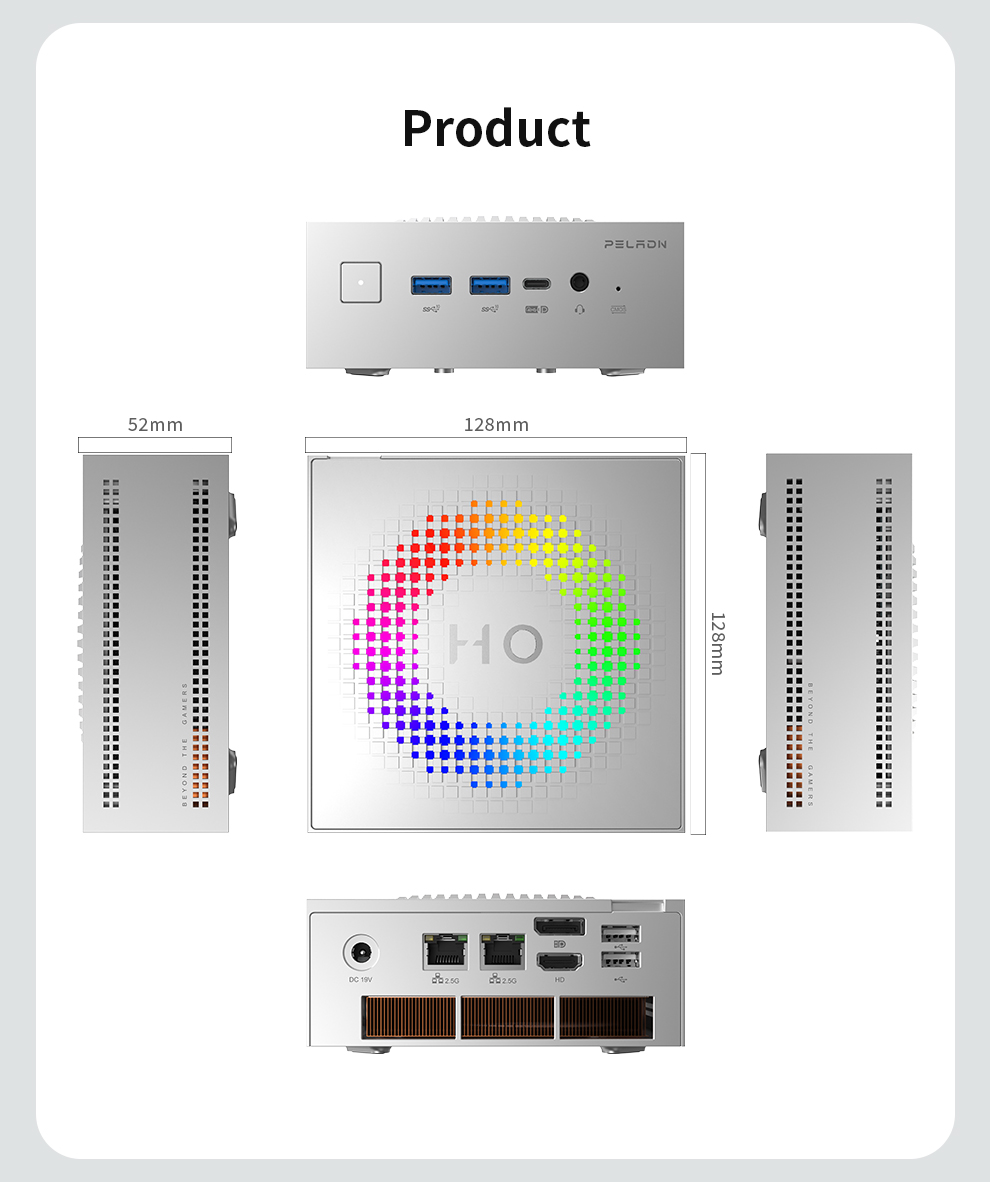

    Weight and size(Manual measurement data for reference only) Net Weight: 1000g Product size: 130*130*55mm
      Gross Weight: 2100g Packing Size: 157*158*112.5mm
    packing information Qty/Carton:12(Carton size: 340*340*362mm)
