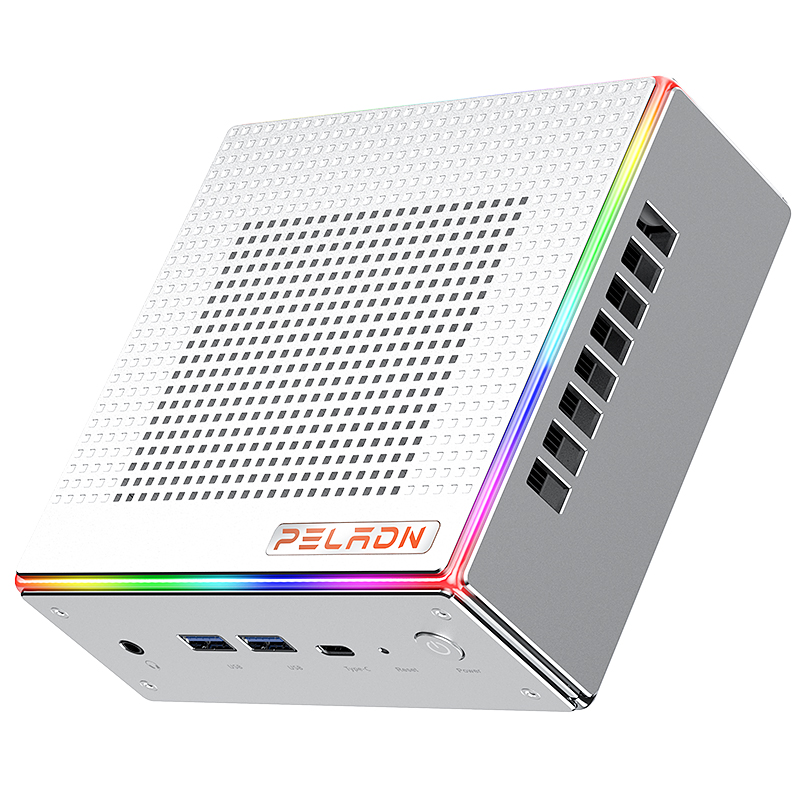

Product Model
|
HA-4 7735HS |
| CPU | Ryzen 7 7735HS / 8 cores /16 threads TDP： 45W |
| Graphics Card | AMD Radeon TM 680M / Frequency：2200 MHz |
| Cache | L1： 512KB / L2：4MB / L3：16MB |
| SODIMM DDR5 | 2*16GB 4800MHz , Maximum support64GB |
| Hard Disc | 1*PCIe 4.0 x4 M.2 NVME SSD 2280，Maximum support 2TB , 1*SATA Interface 2.5‘’，500GB/1TB,7200rpm |
| WiFi / Bluetooth | Intel AX200 M.2 E_key WiFi 6.0/ 蓝牙5.2 |

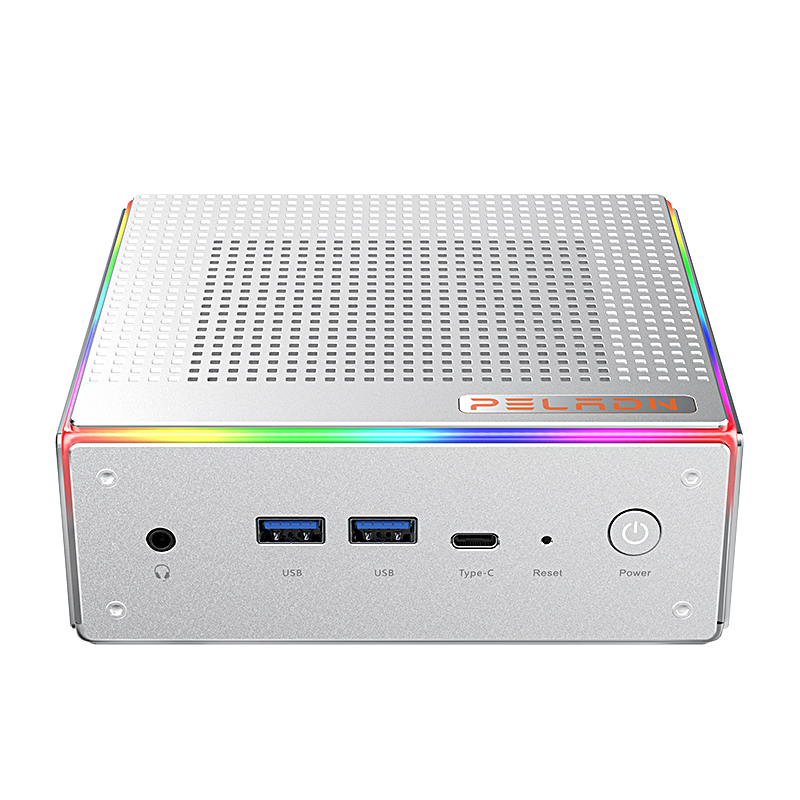

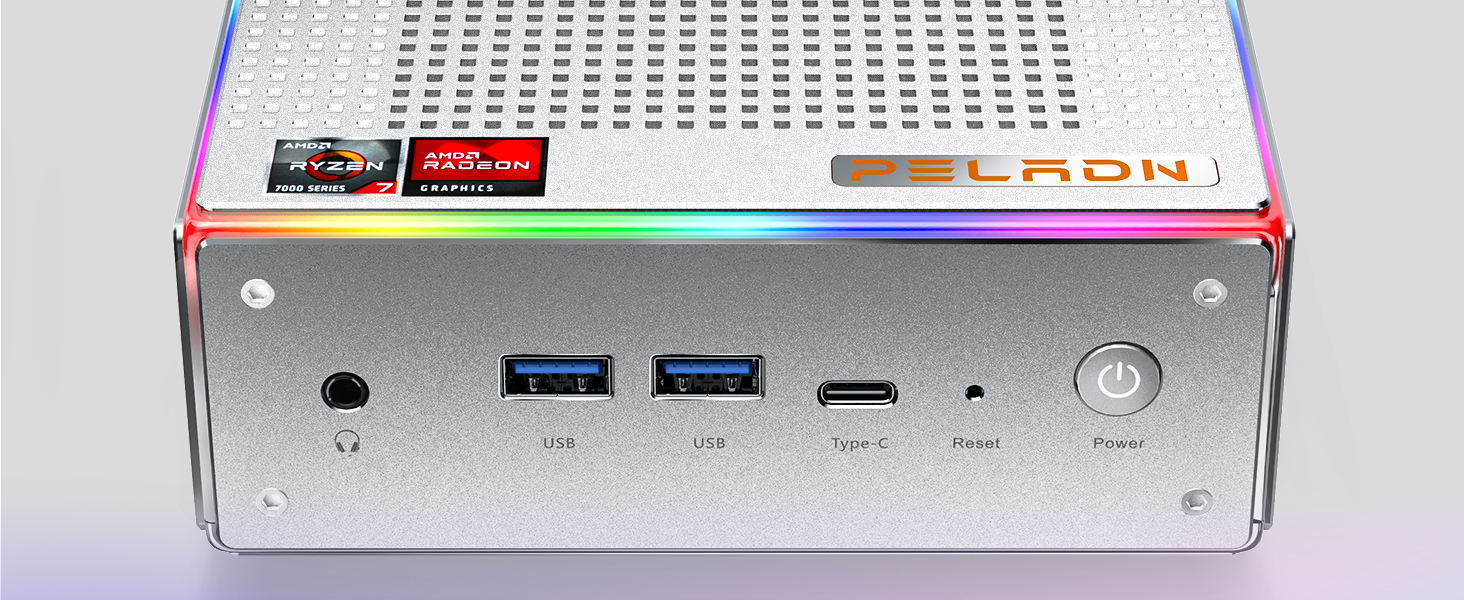

| I/O | 1*USB 3.2 Gen2 Type-C |
| 3*USB 3.2 Gen2 Type-A , 1*USB2.0 | |
| 1*2.5G RJ45 | |
| Audio Jack(HP&MIC) | |
| 2*HD 2.0，4K 60Hz | |
| DC Jack 5.5*2.5 | |
| OS | Windows 11 / Linux |
| Power Adapter | Input： 100~240V AC, 50/60Hz, Output: 19 6.3A |
| Working Environment | Temp：-10℃~45℃，RH： 30%~90% |
| Temp：-20℃~60℃，RH： 10%~90% | |

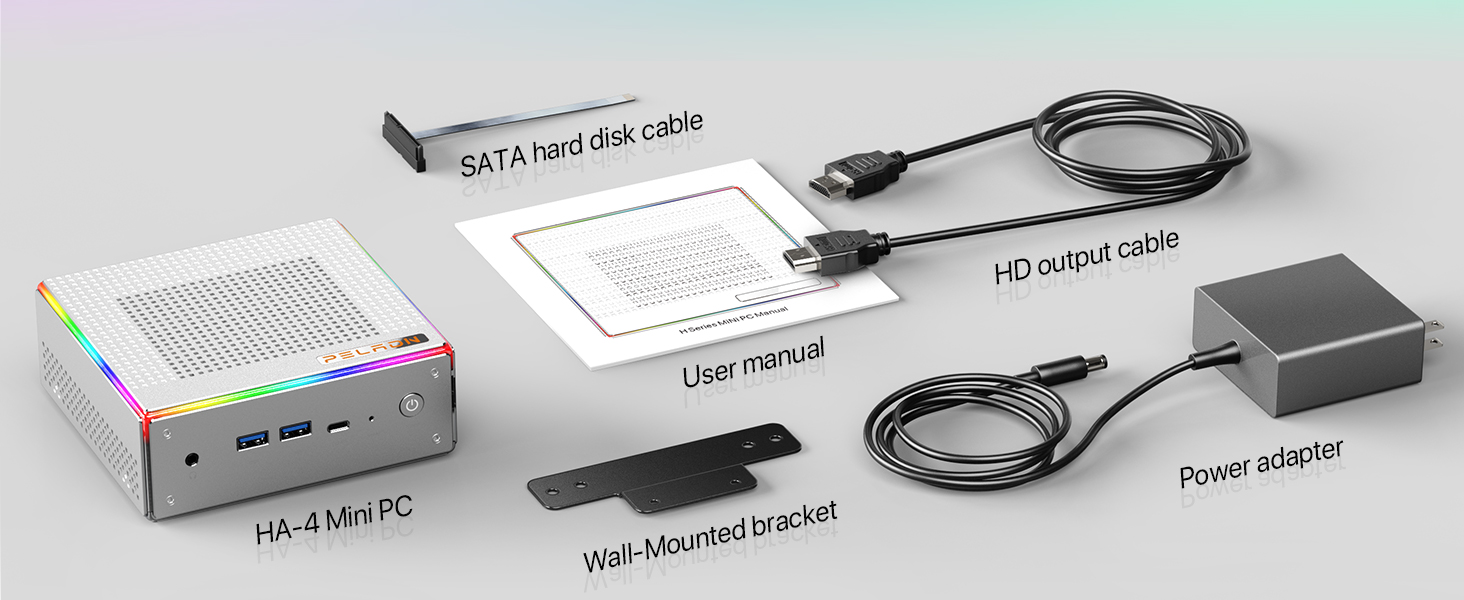

| Ingredients | Wall bracket |
| HD 100CM、2.5-inch hard drive cable | |
| Adapter 19V/6.32A | |
| Additional Function | Power-on automatic startup |
| Measure | 136*128*52mm |
| Net weight | 1KG |
| Gross | 1.8KG |
