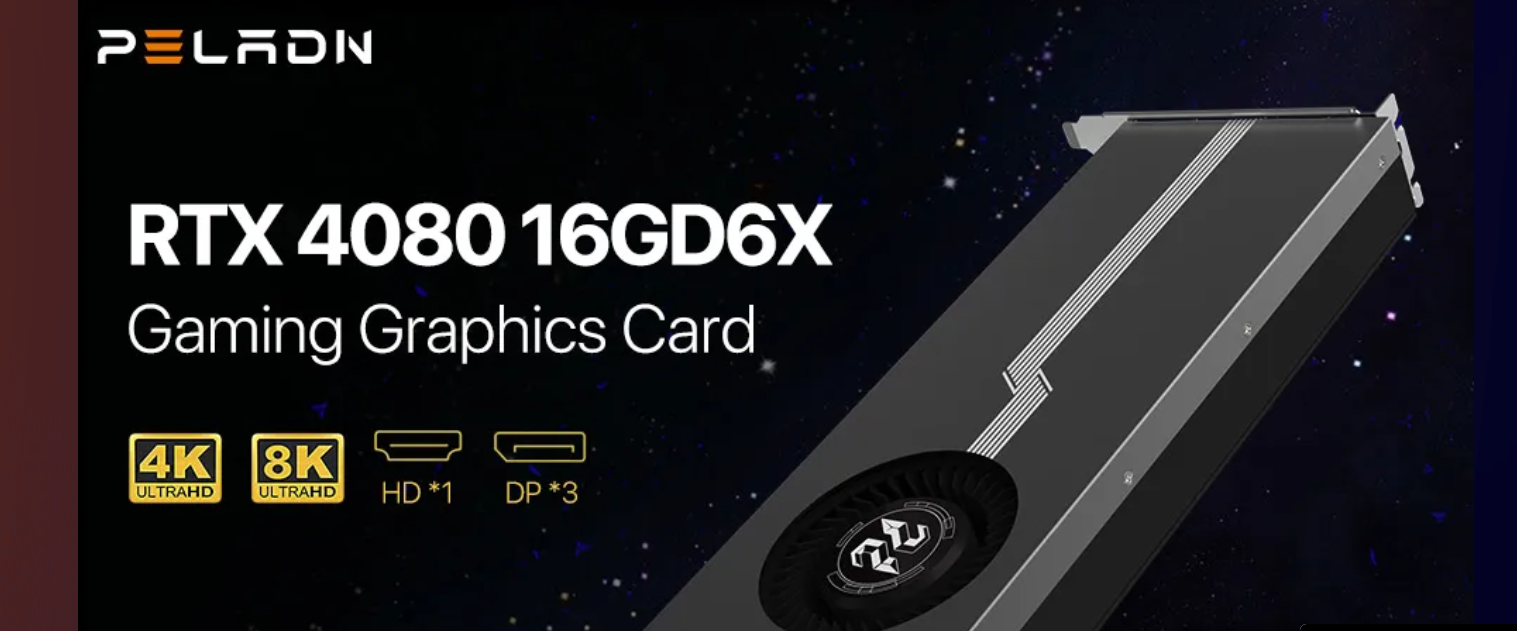

The PELADN RTX 4080 16GD6X ShouHeng graphics card stands out as a distinctive turbo-cooled GPU built on NVIDIA’s Ada Lovelace architecture, targeting . professionals, AI researchers, and high-end gamers who want powerful parallel computing in a compact blower-style form factor. Unlike most modern consumer GPUs that adopt bulky triple-fan cooling designs, the ShouHeng model embraces a single centrifugal turbo fan, making it a strong fit for server chassis, workstations, and space-limited PC builds where airflow and component compatibility matter greatly.
At the heart of this graphics card sits the AD103 GPU, manufactured with a cutting-edge 5nm process. It packs 9728 CUDA cores, paired with 3rd-generation ray tracing cores and 4th-gen Tensor cores, which unlock hardware-accelerated ray tracing and AI inference capabilities. The GPU runs at a core frequency of 2205 MHz, while it is equipped with 16GB of high-speed GDDR6X video memory on a 256-bit memory bus, delivering a peak memory bandwidth of 717 GB/s. This generous VRAM pool is a huge advantage for heavy workloads, including 3D rendering, video editing, AI model fine-tuning, and 4K gaming, as it can hold large textures and datasets without frequent data swapping with system RAM.
Power delivery is rated at 320W TDP, powered by the modern 16-pin 12VHPWR power connector. Users are recommended to pair this card with a reliable 750W or higher power supply for stable operation under full load. The card communicates with the motherboard via PCIe 4.0 x16 interface, offering sufficient bandwidth to eliminate bottlenecks in both gaming and compute tasks. On the output side, it comes with one HDMI port and three DisplayPort interfaces, supporting multi-monitor setups and up to 8K@60Hz video output, ideal for content creators working on ultra-high-resolution projects.
The turbo blower cooling system is the defining feature of the ShouHeng series. The centrifugal fan draws air through the front of the shroud and exhausts hot air directly out of the rear bracket, rather than recirculating heat inside the computer case. This design is widely favored in rack servers and compact workstations. In cramped chassis environments, it prevents hot air buildup around other hardware components. The solid black metal shroud gives the card a minimalist, industrial aesthetic. The PCB is reinforced to reduce bending stress during installation, and the overall dimensions are 26911135 mm with a weight of 1320 grams, which makes it easier to mount in many standard server and mid-tower cases.

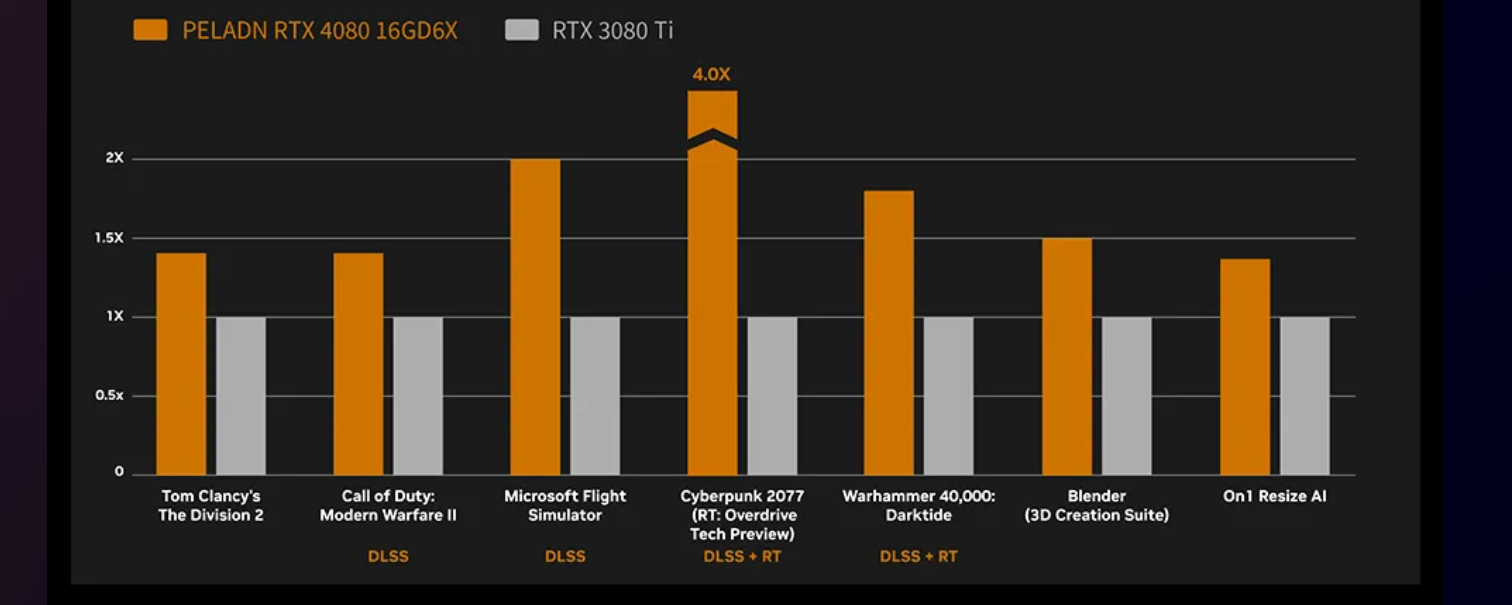

In practical performance tests, the PELADN RTX 4080 ShouHeng handles 4K gaming smoothly with ray tracing enabled, and DLSS 3 further elevates frame rates significantly. Games like Cyberpunk 2077 with path tracing can maintain playable frame rates at 4K resolution when DLSS is activated. For . work, software such as Blender, Premiere Pro, and DaVinci Resolve all benefit massively from the Ada Lovelace GPU acceleration. 3D artists can render complex scenes faster, video editors can scrub through 8K raw footage in real time, and AI practitioners can run local LLMs, image generation models and computer vision tasks with the help of 16GB GDDR6X memory.
Nevertheless, the turbo cooling design has its trade-offs. Under sustained heavy loads, the blower fan produces more audible noise compared to large multi-fan air coolers. This card is not the quietest option for home gaming PCs where low noise is the top priority. Instead, it shines for users who prioritize heat exhaust efficiency, such as workstation users and AI builders.
When evaluating value, the PELADN ShouHeng RTX 4080 offers a compelling alternative to brand-name RTX 4080 products. It retains the full AD103 core specifications and all Ada Lovelace features while adopting a practical blower layout that many mainstream consumer graphics cards have abandoned. For buyers who need both gaming performance and reliable GPU computing power, especially those building servers or compact workstations, this PELADN card strikes a solid balance between raw performance, form factor flexibility and cost.
To sum up, the PELADN RTX 4080 16GD6X ShouHeng is a versatile turbo GPU. It delivers full RTX 4080 computing and gaming capabilities, with a thermal design optimized for enclosed chassis environments. Whether you are a game enthusiast chasing 4K ray-traced visuals, a content creator rendering large media projects, or an AI developer running local models, this graphics card can meet demanding workload requirements. It is a thoughtful choice for users who want the power of RTX 4080 and the benefits of blower-style heat dissipation.
